SS 76mm Hydraulic Cylinder Jack Hollow Plunger Single Acting For Medical Food Equipment

1
MOQ
Negotiate
Price
SS 76mm Hydraulic Cylinder Jack Hollow Plunger Single Acting For Medical Food Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Stainless Steel Hydraulic Hollow Plunger Cylinder
Work Pressure: 0-500Bar
Oil Inlet: NPT1/4
Max Stroke: 76mm
Power: 90KN
Material: Stainless Steel
Highlight:

76mm Hydraulic Cylinder Jack

,

NPT1/4 Hydraulic Cylinder Jack

,

Stainless steel single acting hydraulic cylinder

Basic Infomation
Place of Origin: China
Brand Name: AI LE SEN
Certification: ISO9001
Model Number: RCH-123
Payment & Shipping Terms
Packaging Details: Wooden boxes that can be transported by air
Delivery Time: 4-5 weeks
Payment Terms: D/P, T/T
Supply Ability: 500 Set Every month
Product Description

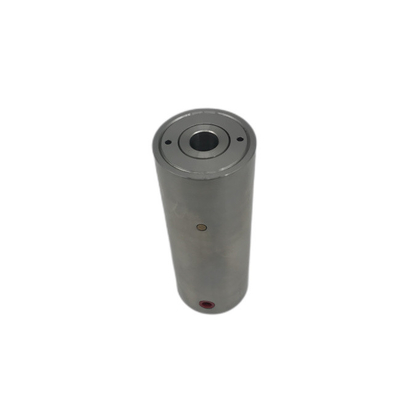

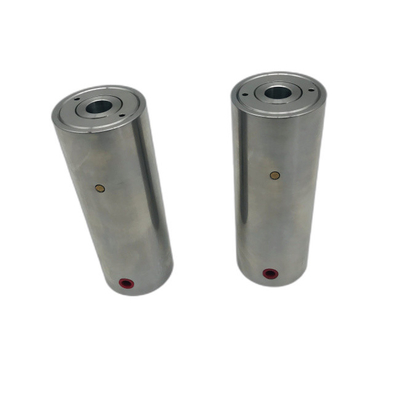

                                                                         Stainless steel hollow plunger hydraulic jack

Product description

1. Suitable for all kinds of testing, maintenance and applications requiring tension

2. Applicable to medical, food and equipment requiring anti-corrosion treatment

3. Hollow plunger design, single-acting, spring return

4. Mounting holes at the bottom for easy installation

5. Note: This product is a non-standard product, all such products are customized according to user requirements.



SAFETY INFORMATION
Please read carefullyfollow instructions, warnings and cautions.Please observe the safety precautions so that it can avoid personal and equipment to injury when you operate the equipment.
WARNING
MAKE SURE THAT THE CYLINDER WILLNOT HOLD LOAD FOR A LONG TIME
A cylinder, when used as a load lifting device,should never be used as a load holding device.After the load has been raised, it should be blocked.



Technical data

Type

Jacking force

KN

Stroke

mm

A

mm

B

mm

C

mm

       D

mm

RCH-123 90 76 70 19.5 184 50.8


SS 76mm Hydraulic Cylinder Jack Hollow Plunger Single Acting For Medical Food Equipment 0

SS 76mm Hydraulic Cylinder Jack Hollow Plunger Single Acting For Medical Food Equipment 1SS 76mm Hydraulic Cylinder Jack Hollow Plunger Single Acting For Medical Food Equipment 2
