Product Details:
|
| Product Name: | Separate Hydraulic Cylinder | Load Capacity: | 498-933KN |
|---|---|---|---|
| Maximum Operating Pressure: | 0-70MPa | Effective Area: | 71.2-133cm2 |
| Oil Inlet: | PT3/8 | Outside Diameter: | 127-177 |
| High Light: | single acting hydraulic jack 498KN,single acting hydraulic jack 933KN,70MPa cylinder hydraulic jack |
||

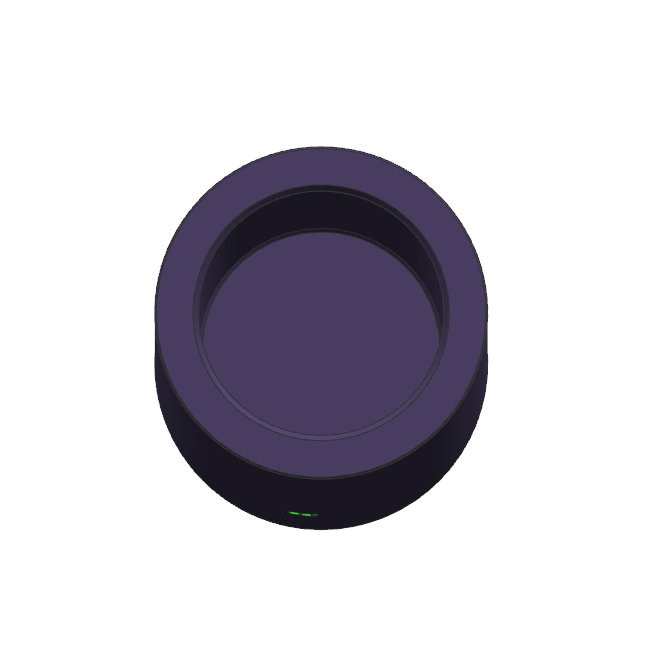

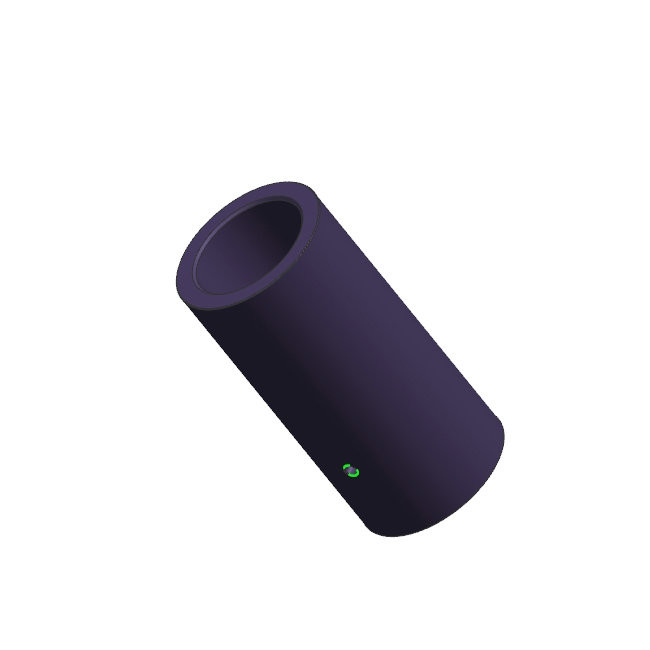

RC-Series Single-Acting Hydraulic Cylinder Bearing Capacity 498-933 KN
Technical data
| Type |
Carrying capacity (KN) |
Stroke mm |
Outside diameter mm |
Height mm |
weight kg |
| RC-502 |
498 |
51 |
127 |
176 | 15 |
| RC-504 | 101 | 227 | 19 | ||
| RC-506 | 159 | 282 | 23 | ||
| RC-5013 | 337 | 460 | 38 | ||
| RC-756 | 718 | 156 | 146 | 285 | 30 |
| RC-7513 | 333 | 492 | 60 | ||
| RC-1006 | 933 | 168 | 177 | 357 | 60 |
| RC-10010 | 260 | 449 | 73 |
Notice
1. High temperature sealing is optional
2. It can be supplied as a complete set, including high pressure pump, quick coupling, oil pipe, and can be designed to be synchronously jacked by software programming
3. Can be supplied as a complete set including pump, oil pipe, coupling. Software programming is also possible to achieve synchronous jacking
4. The data in the above table is subject to deviation and is for reference only. Subject to actual data.
5. When you can't find a hydraulic jack that suits you, you can design it alone.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
