Product Details:
|
| Product Name: | Single Acting Hydraulic Cylinder | Work Pressure: | 0-700Bar |
|---|---|---|---|
| Oil Inlet: | NPT3/8 | Material: | Alloyed Steel |
| High Light: | 700Bar ultra thin hydraulic jack,45KN ultra thin hydraulic jack,Alloyed steel Single Acting Hydraulic Cylinder |
||

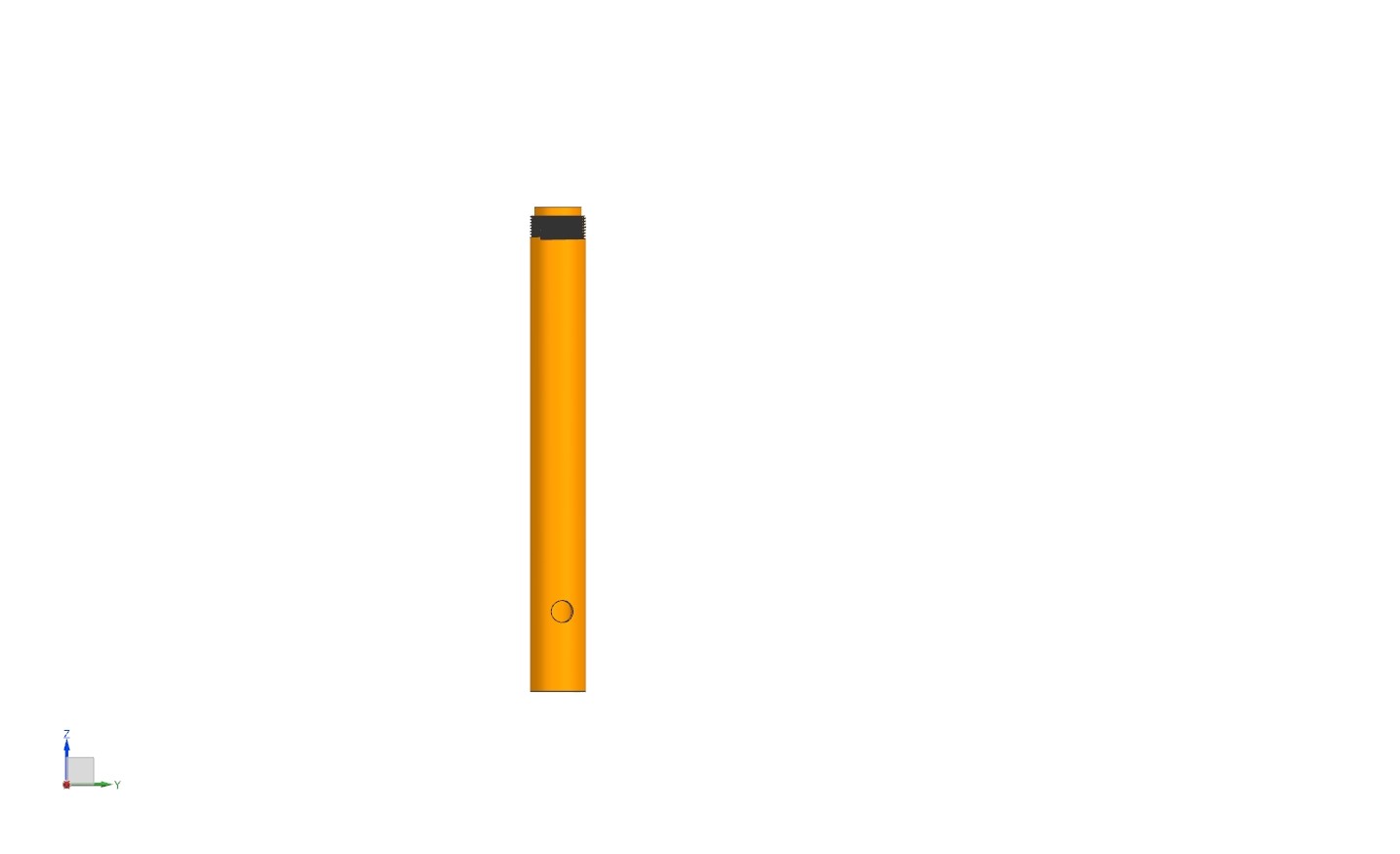

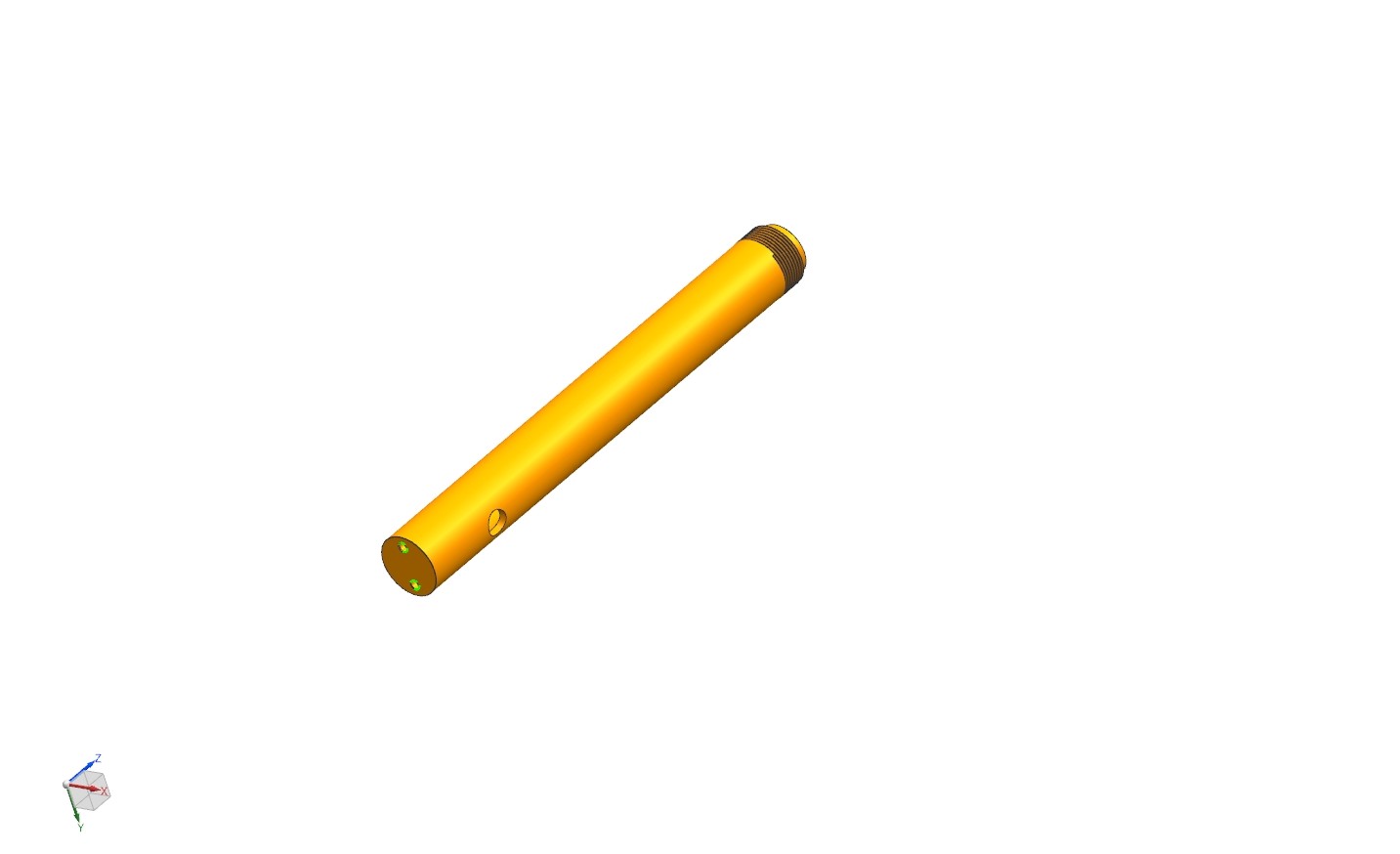

RC-Series Single-Acting Hydraulic Cylinder Is Made Of High-Strength Alloy Steel
Product description
1. Outer ring threads, plunger threads and bottom mounting holes allow for easy positioning
2. Excellent design works in any mounting position
3. Removable handle for easier fixing (select models only)
4. High Strength Return Spring
Technical data
| Type |
Carrying capacity (KN) |
stroke mm |
Outside diameter mm |
height mm |
weight kg |
| RC-50 |
45 |
16 | 58 | 41 | 1 |
| RC-51 | 25 | 38 | 110 | 1 | |
| RC-53 | 76 | 38 | 165 | 1.5 | |
| RC-55 | 127 | 38 | 215 | 1.9 | |
| RC-57 | 177 | 38 | 273 | 2.4 | |
| RC-59 | 232 | 38 | 323 | 2.8 |
Notice
1. All models are equipped with quick connectors to connect with high pressure oil lines and pumps
2. Out of stock, to be customized
