Stainless Steel Hollow Plunger Hydraulic Cylinder Jack For Various Tests

1
MOQ
Negotiate
Price

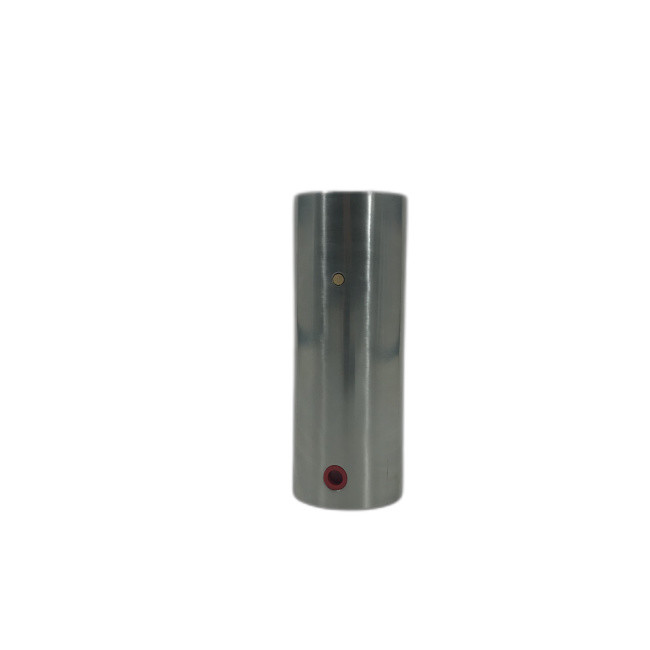

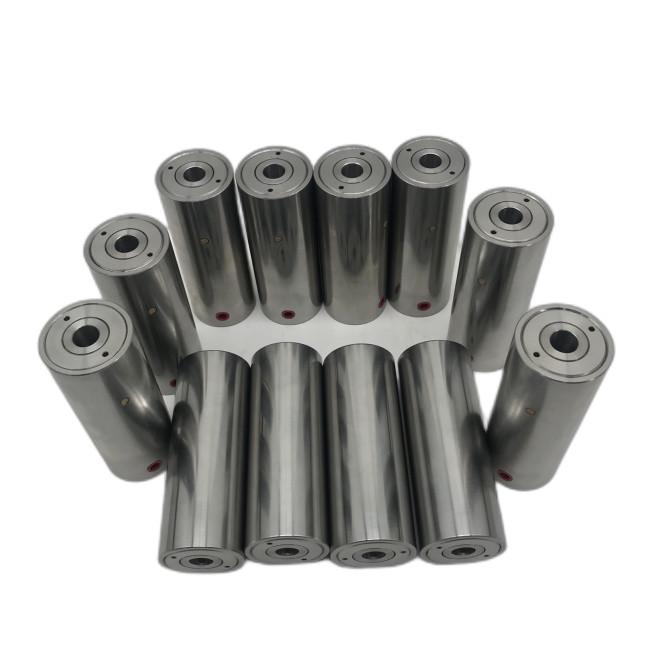

Stainless Steel Hollow Plunger Hydraulic Cylinder Jack For Various Tests
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Stainless Steel Hydraulic Jack
Work Pressure: 0-500Bar
Oil Inlet: NPT1/4
Max Stroke: 155mm
Power: 154KN
Material: Stainless Steel
Highlight:

Stainless Steel hollow plunger hydraulic cylinder

,

155mm hollow plunger hydraulic cylinder

,

Tester hollow cylinder hydraulic jack

Basic Infomation
Place of Origin: China
Brand Name: AI LE SEN
Certification: ISO9001
Model Number: RCH-206
Payment & Shipping Terms
Packaging Details: Wooden boxes that can be transported by air
Delivery Time: 4-5 weeks
Payment Terms: D/P, T/T
Supply Ability: 500 Set Every month
Product Description

                                      Stainless Steel Hollow Plunger Hydraulic Jack Suitable For Various Tests



Product description

1. Suitable for all kinds of testing, maintenance and applications requiring tension

2. Applicable to medical, food and equipment requiring anti-corrosion treatment

3. Hollow plunger design, single-acting, spring return

4. Mounting holes at the bottom for easy installation

5. Note: This product is a non-standard product, all such products are customized according to user requirements.



SAFETY INFORMATION
Please read carefullyfollow instructions, warnings and cautions.Please observe the safety precautions so that it can avoid personal and equipment to injury when you operate the equipment.

Warn
Make sure that the oil cylinder will not keep the load for a long time, if you need to load for a long time, you must install other hydraulic valves
A cylinder, when used as a load lifting device,should never be used as a load holding device.After the load has been raised, it should be blocked.

Technical data

Type

Jacking force

KN

Stroke

mm

A

mm

B

mm

C

mm

       D

mm

RCH-206 154 155 98 27 306 82.6


Stainless Steel Hollow Plunger Hydraulic Cylinder Jack For Various Tests 0

Stainless Steel Hollow Plunger Hydraulic Cylinder Jack For Various Tests 1Stainless Steel Hollow Plunger Hydraulic Cylinder Jack For Various Tests 2
