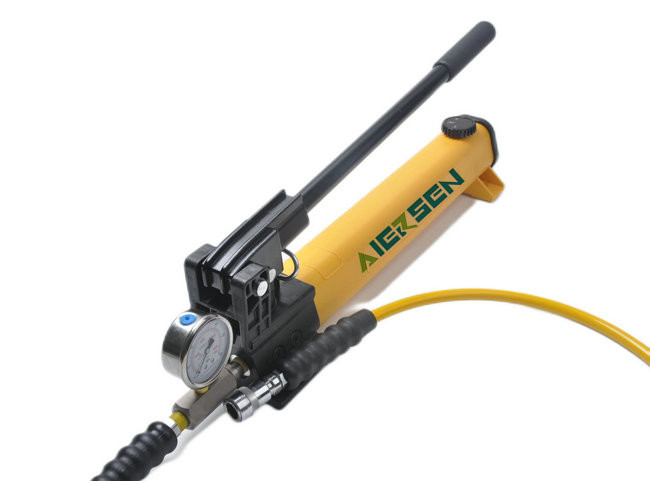

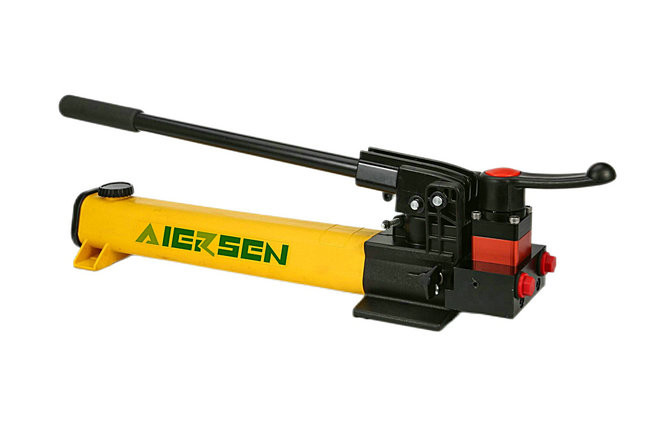

Bidirectional Light Manual Hydraulic High Pressure Pump Pressure Up To 700Bar

Bidirectional Light Manual High Pressure Pump With Pressure Up To 700Bar

Product description

• The light manual hydraulic pump adopts two-stage design, with large flow and high pressure, and the pressure can be adjusted and set according to needs.
•  The pump body is made of high-strength lightweight metal and reinforced engineering plastics, which is light in weight and high in strength..
•  Screw the filler cap to the "venting" position when working, and to the "tight" position at the end of the work.
•  Reversible operation, the reversing handle has 3 gears, the middle position returns oil; rotating the handle left and right can control the oil outlet of the corresponding oil outlet.
•  When operating the two-way light manual high-pressure pump, you need to close the triangle shut-off valve; but when the pressure is too high and the reversing handle is difficult to rotate, you can loosen the shut-off valve to unload, and tighten the shut-off valve before operating again.
•  Suitable for hydraulic tools that require reversing.
• Built-in safety valve for overload protection.
• Pressure output port:PT3/8

Purchase Notes:

Accessories not included in the above products

1 Pressure gauge

2 High pressure tubing

3 Pressure gauge bracket

Please purchase separately if necessary.

Technical data
