3000bar Pneumatic Hydraulic Air Driven High Pressure Pump

1 set
MOQ
Negotiate
Price
3000bar Pneumatic Hydraulic Air Driven High Pressure Pump
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Air-Driven High Pressure Pump
Maximum Pressure: 3000Bar
Fuel Tank Capacity: 8L
Drive Way: Pneumatic
Pressure Gauge Range: 0-4000Bar
Analogue Gauge, Readings Class: 1.6
G.W.: 32kG
Package: 530x470x520(mm)
Highlight:

AILESEN 3000bar air driven high pressure pump

,

AILESEN shockproof air driven high pressure pump

,

AILESEN pneumatic hydraulic pump high pressure 3000bar

Basic Infomation
Place of Origin: China
Brand Name: AI LE SEN
Certification: IOS9001
Model Number: AHP-3500
Payment & Shipping Terms
Packaging Details: Metal toolbox
Delivery Time: In stock
Payment Terms: T/T, D/P
Supply Ability: 500 Set Every month
Product Description

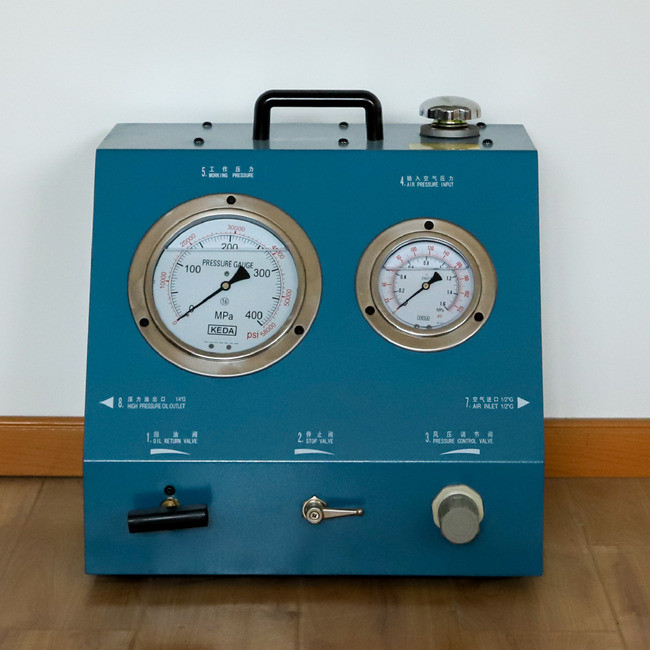

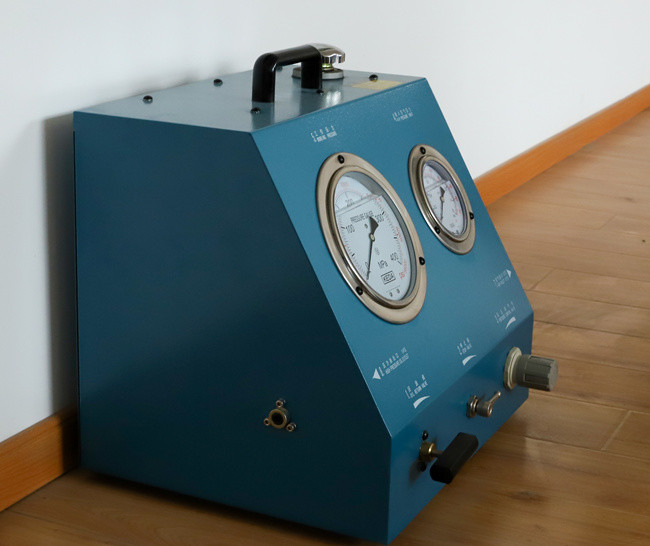

 Model AHP3500Air-Driven High Pressure Pump Pressure Up To 3000bar



Product Brief

1, Model: AHP-3500.

2, Applicable to MAN-B&W low-speed diesel engine.

3, Can provide up to 3000Bar pressure.

4, Can be connected to hydraulic jacks such as cylinder heads, spindles, exhaust valves, crossheads, etc.

5, AHP3500 high pressure pneumatic pump with high quality and good price.

6, External shockproof pressure gauge, easy to read.



Technical parameter

Output Pressure

Max3000 Bar

Fuel Tank Capacity

8 l

Pump speed

Approx400 Cycles/Min.At8.0 Bar Air Input

Max Flow At No Pressure

Approx0.45 Litres/Min.At 8.0 Bar Air Input

Weight

32Kg

Dimensions

490*380*440(mm)

Air Access Port

Iso228/1-G1/2

High-Voltage Output

Iso228/1-G1/4





3000bar Pneumatic Hydraulic Air Driven High Pressure Pump 0

3000bar Pneumatic Hydraulic Air Driven High Pressure Pump 1



Company Profile

1, Allison (Changzhou) Power Technology Co., Ltd.'s main business is the research and development, manufacturing, sales, sales and    maintenance of two- and four-stroke diesel engine pneumatic/hydraulic fuel injection valves and fuel pump test equipment and hydraulic power units. Use our products Can reduce ship maintenance costs.

2,We are now looking for people with lofty ideals who are willing to work with the company for mutual benefit and mutual benefit to jointly develop the hydraulic industry market; responsible for the development and management follow-up of the customer groups in the jurisdiction, establish long-term and stable cooperative relations with the main customer groups in the region, and be responsible for this The development of the regional blank market and the company develop and grow together.



Company products

Fuel valve testing devices, pneumatic high-pressure pumps, manual high-pressure pumps, electric high-pressure pumps, hydraulic cylinders, hydraulic jacks and various hydraulic tools and pneumatic tools.

These products are widely used in important fields such as shipbuilding, marine engineering, aviation, metallurgical equipment, mining, water conservancy engineering, wind power generation, nuclear power engineering and so on.

Among them, fuel valve testing devices, pneumatic high-pressure pumps, manual high-pressure pumps, and electric high-pressure pumps have sufficient inventory and can be shipped at any time.

Hydraulic cylinders, hydraulic jacks and various hydraulic tools are customized products that need to be designed and manufactured according to user requirements. Usually the shipping cycle of these products is about 30 days.

We are a complete hydraulic system supplier. If you need advice on bolt connections, please contact us for free technical consultation

We can advise you competently and objectively. We will find a suitable technical solution to bring you economic benefits.
