Single 1050 Bar High Pressure Electric Hydraulic Pump Portable Hydraulic Power Units

Single 1050 Bar High Pressure Electric Hydraulic Pump Portable Hydraulic Power Units
Single 1050 Bar High Pressure Electric Hydraulic Pump Portable Hydraulic Power Units Single 1050 Bar High Pressure Electric Hydraulic Pump Portable Hydraulic Power Units

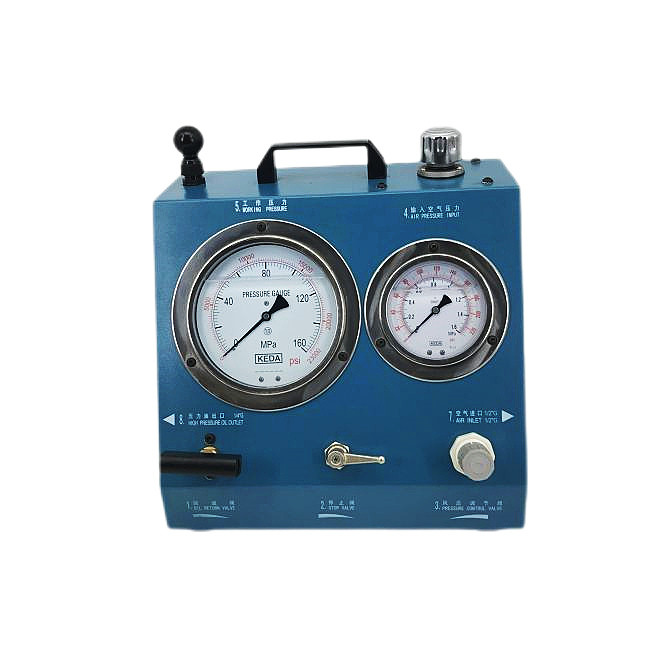

Large Image :  Single 1050 Bar High Pressure Electric Hydraulic Pump Portable Hydraulic Power Units

Product Details:
Place of Origin: China
Brand Name: AI LE SEN
Certification: IOS9001
Model Number: HPU1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Carton box suitable for air transportation
Delivery Time: In stock
Payment Terms: T/T, D/P
Supply Ability: 500 Set Every month

Single 1050 Bar High Pressure Electric Hydraulic Pump Portable Hydraulic Power Units

Description
Product Name: Portable Hydraulic Power Units Maximum Pressure: 1050Bar
Fuel Tank Capacity: 3.5L Drive Way: Pneumatic
Pump Technology: Single G.W.: 16kG
N.W.: 24kg Package: 490x380x440(mm)
High Light:

ailesen Single pneumatic hydraulic pressure pump

,

ailesen 1050 Bar pneumatic hydraulic pressure pump

,

1050 Bar pneumatic hydraulic pressure pump ailesen

Portable Hydraulic Power Units for all hydraulic tools Hpu -1500



Product Brief

1, Pneumatic-hydraulic power supply for hydraulic tools

2, For operation of engine hydraulic tool series, i.e. hydraulic jacks

3, Internal pump(s), high-pressure pipes, ensurereliability and efficiency

4, Can also be adapted for special applications like opening skf couplings, opening/separating turbo chargers etc

5, External pointer pressure gauge, easy to read

6, Use stainless steel anti-vibration pressure gauge



Technical parameter

Output Pressure

Max,1050Bar

Fuel Tank Capacity

3.5l

Hydraulic gauge

1600Bar

Max,Flow At No Pressure

ApproX. 0.35 liItres/Min.At 8.0 Bar Air Input

Weight

16Kg

Dimensions

490*380*440(mm)

Air Access Port

Iso228/1-G1/2

High-Voltage Output

1/4” BSP

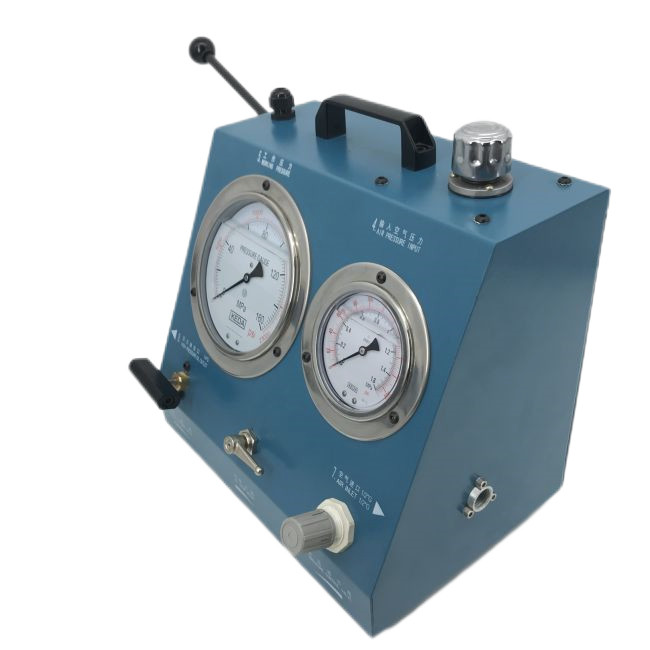

Single 1050 Bar High Pressure Electric Hydraulic Pump Portable Hydraulic Power Units 0Single 1050 Bar High Pressure Electric Hydraulic Pump Portable Hydraulic Power Units 1





Note

If you need other accessories of the pneumatic high-pressure pump, you need to purchase additional.
