Product Details:
|
| Product Name: | Pneumatic Hydraulic High Pressure Pump | Maximum Pressure: | 1200Bar |
|---|---|---|---|
| Fuel Tank Capacity: | 3.5L | Drive Way: | Pneumatic |
| Colour: | Blue | G.W.: | 16kG |
| N.W.: | 24kg | Package: | 490x380x440(mm) |
| High Light: | AILESEN 1200 Bar Hydraulic High Pressure Pump,AILESEN 16kG Hydraulic High Pressure Pump,AILESEN Steel portable pneumatic pump |
||

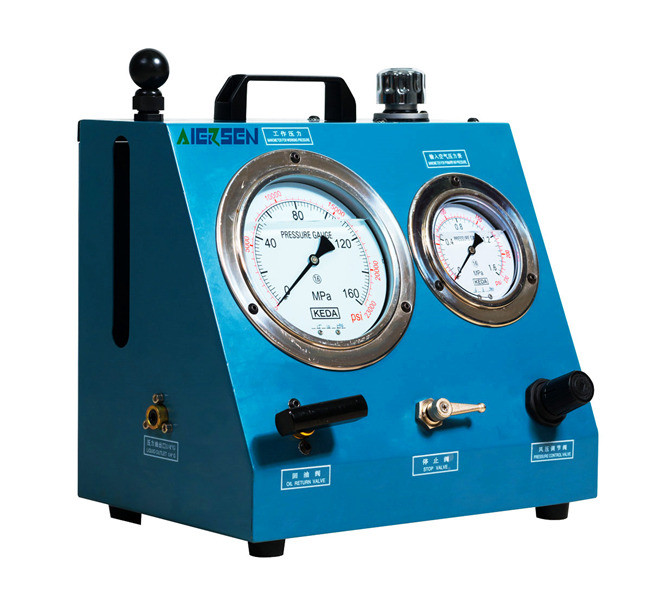

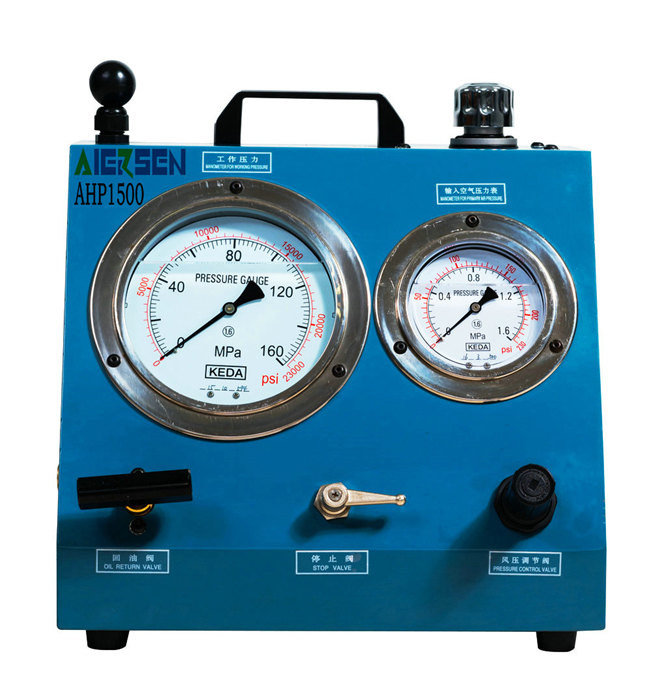

The Maximum Pressure Of Pneumatic Hydraulic High Pressure Pump Can Reach 1200Bar
Product Brief
1, Pneumatic hydraulic pump converts air pressure into high-pressure oil, and uses the low air pressure of the large-area piston to better produce high hydraulic pressure at the small-area piston end.
2, Various types of hydraulic tools can be connected to provide power for hydraulic tools
3, Can provide up to 1200Bar pressure.
4, This hydraulic pump has a compact structure and a steel protective shell, which is not easy to break
Unique hand-in-one design. It can be driven by compressed air or by pressing the handle..
5, External pointer pressure gauge, easy to read.
6, Use stainless steel anti-vibration pressure gauge.
Technical parameter
|
Output Pressure |
Max,1200 Bar |
|
Fuel Tank Capacity |
3.5l |
|
Pump Speed |
ApproX.650 Cyyles/Min.At8.0 Bar Air Input |
|
Max,Flow At No Pressure |
ApproX. 0.35 liItres/Min.At 8.0 Bar Air Input |
|
Weight |
16Kg |
|
Dimensions |
490*380*440(mm) |
|
Air Access Port |
Iso228/1-G1/2 |
|
High-Voltage Output |
Iso228/1-G1/4 |
Note
If you need other accessories of the pneumatic high-pressure pump, you need to purchase additional.
Company Profile
1, Allison (Changzhou) Power Technology Co., Ltd.'s main business is the research and development, manufacturing, sales, sales and maintenance of two- and four-stroke diesel engine pneumatic/hydraulic fuel injection valves and fuel pump test equipment and hydraulic power units. Use our products Can reduce ship maintenance costs.
2, We are now looking for people with lofty ideals who are willing to work with the company for mutual benefit and mutual benefit to jointly develop the hydraulic industry market; responsible for the development and management follow-up of the customer groups in the jurisdiction, establish long-term and stable cooperative relations with the main customer groups in the region, and be responsible for this The development of the regional blank market and the company develop and grow together.
Company products
Fuel valve testing devices, pneumatic high-pressure pumps, manual high-pressure pumps, electric high-pressure pumps, hydraulic cylinders, hydraulic jacks and various hydraulic tools and pneumatic tools.
These products are widely used in important fields such as shipbuilding, marine engineering, aviation, metallurgical equipment, mining, water conservancy engineering, wind power generation, nuclear power engineering and so on.
Among them, fuel valve testing devices, pneumatic high-pressure pumps, manual high-pressure pumps, and electric high-pressure pumps have sufficient inventory and can be shipped at any time.
Hydraulic cylinders, hydraulic jacks and various hydraulic tools are customized products that need to be designed and manufactured according to user requirements. Usually the shipping cycle of these products is about 30 days.
We are a complete hydraulic system supplier. If you need advice on bolt connections, please contact us for free technical consultation
We can advise you competently and objectively. We will find a suitable technical solution to bring you economic benefits.
