Product Details:
|
| Product Name: | High Pressure Pump Unit | Maximum Pressure: | 1200Bar |
|---|---|---|---|
| Fuel Tank Capacity: | 3.5L | Drive Way: | Pneumatic |
| Pump Technology: | Single | G.W.: | 16kG |
| N.W.: | 24kg | Package: | 490x380x440(mm) |
| High Light: | 1200Bar High Pressure Pump Unit,1200Bar marine Pneumatic Pump,engine hydraulic marine Pump Unit |
||

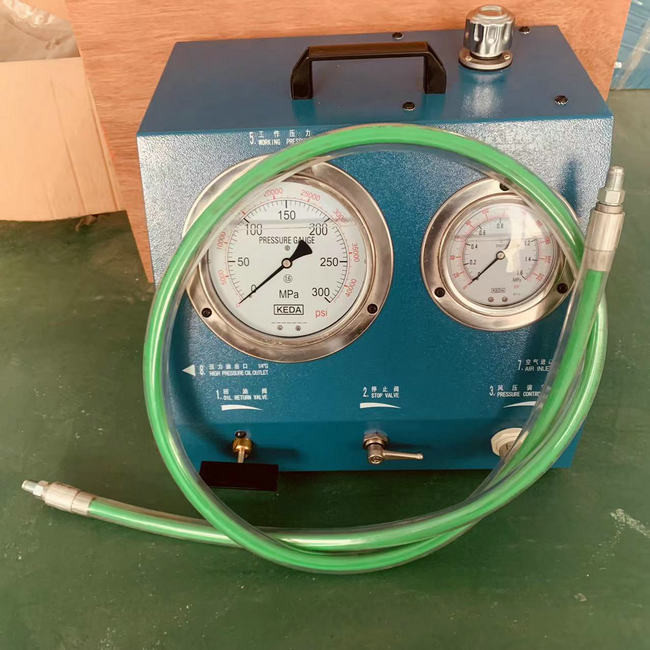

High Pressure Pump Unit AHP1500
Product Brief
1, The unit is powered by air or by hand, and delivers a maximum hydraulic pressure of 1200bar.
2, For operation of engine hydraulic tool series, i.e. hydraulic jacks
3, Internal pump(s), high-pressure pipes, ensurereliability and efficiency
4, Can also be adapted for special applications like opening skf couplings, opening/separating turbo chargers etc
Technical parameter
|
Output Pressure |
Max,1200Bar |
|
Fuel Tank Capacity |
3.5L |
|
Hydraulic gauge |
0-1600Bar |
|
Max,Flow At No Pressure |
ApproX. 0.35 liItres/Min.At 8.0 Bar Air Input |
|
Weight |
16Kg |
|
Dimensions |
490*380*440(mm) |
|
Air Access Port |
ISO228/1-G1/2 |
|
High-Voltage Output |
ISO228/1-G1/4 |
Note
If you need other accessories of the pneumatic high-pressure pump, you need to purchase additional.
