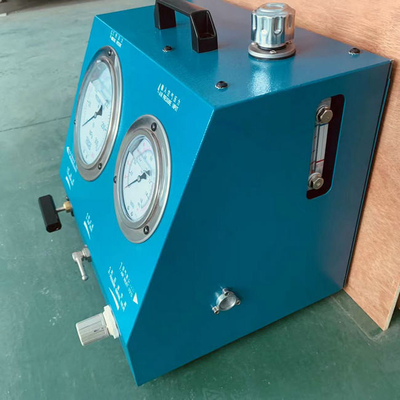

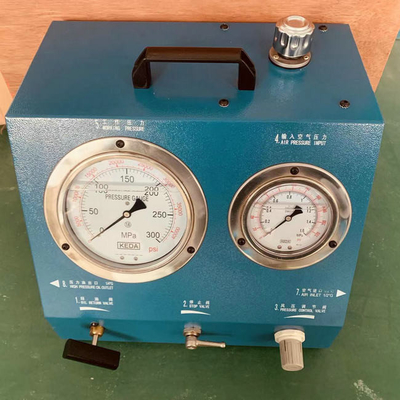

Pneumatic High Pressure Pump Provides Power For Tension Jacking And Bolting During Engine Overhaul
Product Brief
For over a decade, marine service providers have relied on Ailesen's G-Pump. Its high-quality manufacturing and robust construction make it durable and the first choice for overhaul and repair applications. G-pumps provide tensioning, jacking and bolting during engine overhauls with the power, speed and reliability you need. This high pressure hydraulic pump is pneumatic
Technical parameter
|
Output pressure(Bar) |
MAX,2800 At8.0 Bar Air Input |
|
Fuel tank capacity (L) |
4.5 |
|
Pump speed |
APPROX.550 CYCLES/MIN.AT8.0 BAR AIR INPUT |
|
MAX,FLOW AT NO PRESSURE |
APPROX. 0.5 LITRES/MIN.AT 8.0 BAR AIR INPUT |
|
Weight(Kg) |
28 |
|
Dimensions(mm) |
340*320*380 |
|
AIR ACCESS PORT |
ISO228/1-G1/2 |
|
HIGH-VOLTAGE OUTPUT |
ISO228/1-G1/4 |
Company products
We are a complete hydraulic system supplier. If you need bolt tensioning and loosening services, please contact us for free technical consultation.
Fuel valve testing device, pneumatic high pressure pump, manual high pressure pump, electric high pressure pump, hydraulic cylinder, hydraulic jack and various hydraulic tools and pneumatic tools.
These products are widely used in shipbuilding, marine engineering, aviation, metallurgical equipment, mining, hydraulic engineering, wind power, nuclear power engineering and other important fields.
Among them, the fuel valve detection device, pneumatic high-pressure pump, manual high-pressure pump, and electric high-pressure pump are in sufficient stock and can be shipped at any time.
