1500 Bar High Pressure Hydraulic Power Unit Hand Pump Pneumatic 3.5Ltr Fuel Tank

1 set
MOQ
Negotiate
Price
1500 Bar High Pressure Hydraulic Power Unit Hand Pump Pneumatic 3.5Ltr Fuel Tank
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: High Pressure Pump Unitis
Maximum Pressure: 1500Bar
Fuel Tank Capacity: 3.5L
Analogue Gauge: Readings Class 1.0
Colour: Blue
G.W.: 16kG
N.W.: 19kg
Package: 490x380x440(mm)
Highlight:

1500Bar high pressure hydraulic power unit

,

high pressure hydraulic power unit OEM

,

hand pump pneumatic 3.5ltr Fuel tank

Basic Infomation
Place of Origin: China
Brand Name: AI LE SEN
Certification: IOS9001
Model Number: HPU150
Payment & Shipping Terms
Packaging Details: Carton box suitable for air transportation
Delivery Time: In stock
Payment Terms: T/T, D/P
Supply Ability: 500 Set Every month
Product Description

HPU150 High Pressure Pump Unitis Powered By Air Or By Hand, And Delivers A Maximum Hydraulic Pressure Of 1500bar



Product Brief

1. The unit is powered by air or by hand, and delivers a maximum hydraulic pressure of 1500bar

2. Analogue gauge, readings class 1.0.

3, Tank capacity app. 3.5 liter.



Technical parameter

Output Pressure

Max,1500 Bar

Fuel Tank Capacity

3.5L

Pump Speed

ApproX.650 Cyyles/Min.At8.0 Bar Air Input

Max,Flow At No Pressure

ApproX. 0.35 liItres/Min.At 8.0 Bar Air Input

Weight

16Kg

Dimensions

490*380*440(mm)

Air Access Port

1/2″ BSP

LIQUID OUTLET PORT

1/4″ MALE (CEJN 10.116.5252)



1500 Bar High Pressure Hydraulic Power Unit Hand Pump Pneumatic 3.5Ltr Fuel Tank 01500 Bar High Pressure Hydraulic Power Unit Hand Pump Pneumatic 3.5Ltr Fuel Tank 1

1500 Bar High Pressure Hydraulic Power Unit Hand Pump Pneumatic 3.5Ltr Fuel Tank 2

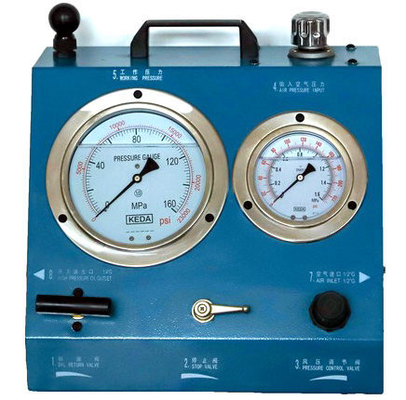

       1. OIL RETURN VALVE                                                        2. STOP VALVE(CYCLING VALVE)

       3. PRESSURE CONTROL VALVE                                        4. MANOMETER PRESSURE CONTROL

       5. MANOMETER FOR WORKING PRESSURE                    6. FILLER CAP

       7. STUD MARKED"AIR INLET"                                            8. STUD MAKRKED"HIGH PRESSURE OUTLET"

       9. LEVER FOR HAND PUMPING                                         10. SLOT WITH BUSHING FOR LEVER



Note

If you need other accessories of the pneumatic high-pressure pump, you need to purchase additional.



Company products

Fuel valve testing devices, pneumatic high-pressure pumps, manual high-pressure pumps, electric high-pressure pumps, hydraulic cylinders, hydraulic jacks and various hydraulic tools and pneumatic tools.

These products are widely used in important fields such as shipbuilding, marine engineering, aviation, metallurgical equipment, mining, water conservancy engineering, wind power generation, nuclear power engineering and so on.

Among them, fuel valve testing devices, pneumatic high-pressure pumps, manual high-pressure pumps, and electric high-pressure pumps have sufficient inventory and can be shipped at any time.

Hydraulic cylinders, hydraulic jacks and various hydraulic tools are customized products that need to be designed and manufactured according to user requirements. Usually the shipping cycle of these products is about 30 days.

We are a complete hydraulic system supplier. If you need advice on bolt connections, please contact us for free technical consultation

We can advise you competently and objectively. We will find a suitable technical solution to bring you economic benefits.
