Product Details:
|
| Product Name: | Air-Driven High Pressure Pump | Model: | AHP3000.1 |
|---|---|---|---|
| Maximum Pressure: | 2500Bar | Fuel Tank Capacity: | 4.5L |
| Liquid Outlet: | PF 1/4″ | Drive Way: | Pneumatic |
| N.W.: | 24kg | Package: | 550x430x450(mm) |
| High Light: | 4.5L air driven high pressure pump,PF1/4″ air driven high pressure pump,24kg high pressure pump unit |
||

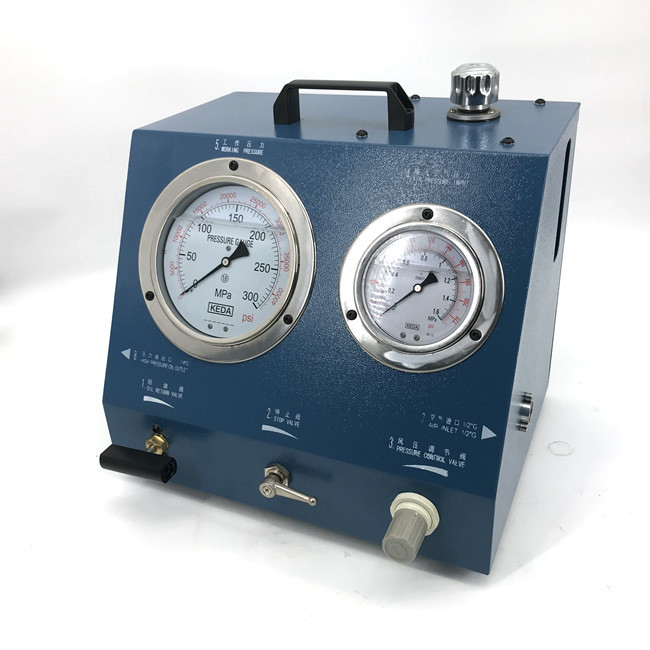

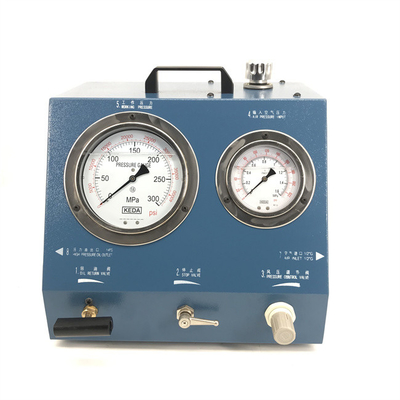

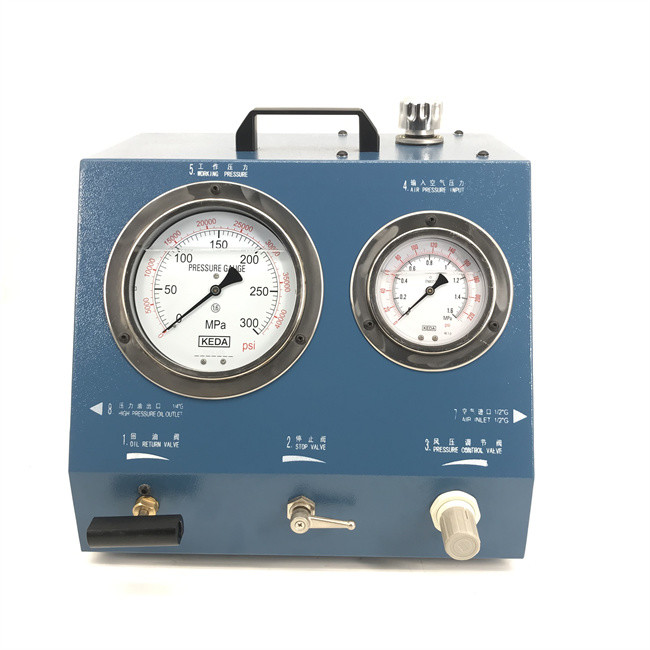

Model AHP3000.1 Air-Driven High Pressure Pump Maximum Pressure 2500Bar
Product Brief
MODEL NO. : AHP - 3000.1
1, The unit is powered by air, and delivers a maximum hydraulic pressure of 2500Bar.
2, Can be connected to all kinds of high-pressure oil cylinders.
3, The equipment is compact in structure, light in weight, steel protective shell, light in weight, durable, and easy to handle.
4, Output pressure 0-2200Bar can adjust the required pressure arbitrarily.
5, External pointer pressure gauge, easy to read.
6, Use stainless steel anti-vibration pressure gauge.
7, Analogue gauge, readings class 1.6.
Technical parameter
|
Output Pressure(Bar) |
MAX,2500 |
|
Fuel Tank Capacity (L) |
4.5 |
|
Pump Speed |
APPROX.550 CYCLES/MIN.AT8.0 BAR AIR INPUT |
|
Max,Flow At No Pressure |
APPROX. 0.5 LITRES/MIN.AT 8.0 BAR AIR INPUT |
|
Weight(Kg) |
24 |
|
Dimensions(mm) |
340*320*380 |
|
Air Access Port |
PT 1/2" |
|
High-Voltagee Output |
PF 1/4″ |
Company products
Fuel valve testing devices, pneumatic high-pressure pumps, manual high-pressure pumps, electric high-pressure pumps, hydraulic cylinders, hydraulic jacks and various hydraulic tools and pneumatic tools.
These products are widely used in important fields such as shipbuilding, marine engineering, aviation, metallurgical equipment, mining, water conservancy engineering, wind power generation, nuclear power engineering and so on.
Among them, fuel valve testing devices, pneumatic high-pressure pumps, manual high-pressure pumps, and electric high-pressure pumps have sufficient inventory and can be shipped at any time.
Hydraulic cylinders, hydraulic jacks and various hydraulic tools are customized products that need to be designed and manufactured according to user requirements. Usually the shipping cycle of these products is about 30 days.
We are a complete hydraulic system supplier. If you need advice on bolt connections, please contact us for free technical consultation
We can advise you competently and objectively. We will find a suitable technical solution to bring you economic benefits.
