6L Fuel Tank Hydraulic High Pressure Pump

1 set
MOQ
Negotiate
Price
6L Fuel Tank Hydraulic High Pressure Pump
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Hydraulic High Pressure Pump
Maximum Pressure: 2350Bar
Fuel Tank Capacity: 6L
Drive Way: Pneumatic
Colour: Blue
G.W.: 24kG
N.W.: 32kg
Package: 550x430x450(mm)
Highlight:

AILESEN 6L tank Hydraulic High Pressure Pump

,

AILESEN Blue Hydraulic High Pressure Pump

,

Blue Hydraulic High Pressure Pump AILESEN

Basic Infomation
Place of Origin: China
Brand Name: AI LE SEN
Certification: IOS9001
Model Number: AHP -3000.1
Payment & Shipping Terms
Packaging Details: Carton box suitable for air transportation
Delivery Time: In stock
Payment Terms: T/T, D/P
Supply Ability: 500 Set Every month
Product Description

          The Pneumatic Pump Is Powered By Air, And The Maximum Hydraulic Pressure Is 2350bar.



Product Brief

  • The unit is powered by air, and delivers a maximum hydraulic pressure of 2350bar
  • Analogue gauge, readings class 1.6
  • Max. Flow 0.5l/min with app. 2.51cc displacement per cycle and 200 cycles per min
  • Tank capacity app. 6 liter

Technical parameter

Output pressure(Bar)

MAX,2350 At 7.0 Bar Air Input

Fuel tank capacity (L)

6

Pump speed

APPROX.200 CYCLES/MIN.AT8.0 BAR AIR INPUT

Max,Flow At No Pressere

APPROX. 0.5 LITRES/MIN.AT 8.0 BAR AIR INPUT

Weight(Kg)

24

Dimensions(mm)

340*320*380

Air Access Port

PT 1/2" FEMALE

High-Voltage Output

PF 1/4″ MALE ADAPTER



1. MODEL NO. : AHP - 3000.1
2. AREA RATIO : 350 : 1
3. WORKING PRESSURE : MIN. 2350BAR AT 7BAR AIR INPUT
4. AIR CONSUMPTION : 300~1050 LITER/MIN. AT 7BAR AIR INPUT
5. PUMPING SPEED : APPROX. 200 CYCLES/MIN. AT 7BAR AIR INPUT
6. DISPLACEMENT PER CYCLE : 2.51㎤
7. MAX. FLOW AT NO OUTPUT PRESSURE : MIN. 0.5 LITER/MIN. AT 7BAR AIR INPUT
8. TANK CAPACITY : 14 LITER
9.
AIR INLET PORT : PT 1/2" FEMALE
10. LIQUID OUTLET PORT : PF 1/4″ MALE ADAPTER

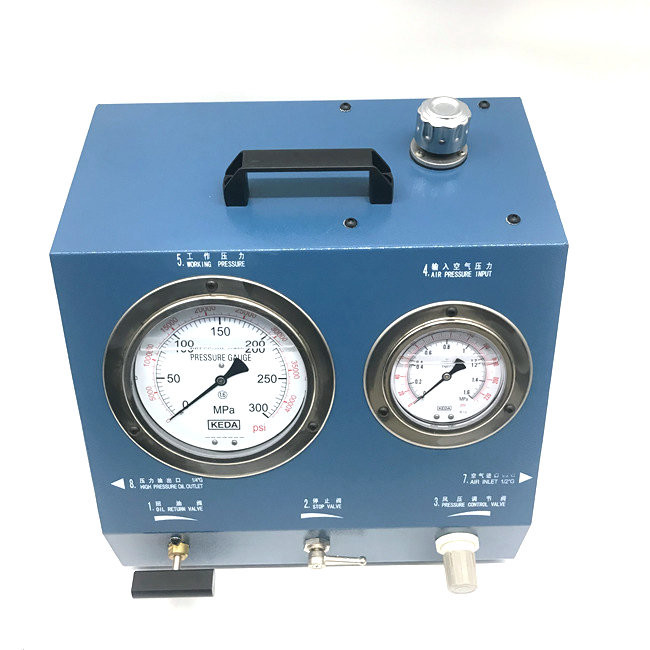

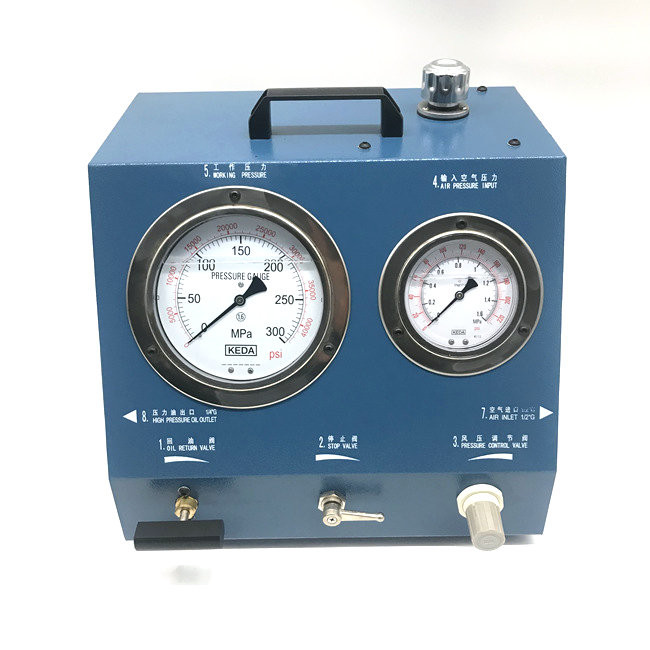

6L Fuel Tank Hydraulic High Pressure Pump 06L Fuel Tank Hydraulic High Pressure Pump 1

Company products



Fuel valve testing devices, pneumatic high-pressure pumps, manual high-pressure pumps, electric high-pressure pumps, hydraulic cylinders, hydraulic jacks and various hydraulic tools and pneumatic tools.

These products are widely used in important fields such as shipbuilding, marine engineering, aviation, metallurgical equipment, mining, water conservancy engineering, wind power generation, nuclear power engineering and so on.

Among them, fuel valve testing devices, pneumatic high-pressure pumps, manual high-pressure pumps, and electric high-pressure pumps have sufficient inventory and can be shipped at any time.

Hydraulic cylinders, hydraulic jacks and various hydraulic tools are customized products that need to be designed and manufactured according to user requirements. Usually the shipping cycle of these products is about 30 days.

We are a complete hydraulic system supplier. If you need advice on bolt connections, please contact us for free technical consultation

We can advise you competently and objectively. We will find a suitable technical solution to bring you economic benefits.
