Home /Products/Hydraulic Pneumatic Pump/HDP1100-D2 Hydraulic Pneumatic Pump Fuel Valve Test Device Pressure 1100Bar

HDP1100-D2 Hydraulic Pneumatic Pump Fuel Valve Test Device Pressure 1100Bar

1Set
MOQ
Negotiable
Price
HDP1100-D2 Hydraulic Pneumatic Pump Fuel Valve Test Device Pressure 1100Bar
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Fuel Valve Test Device Pneumatic Pump Unit
Pressure: 1100bar
Air Pressure: 11Bar
Area Ratio: 1:00
Application: Single Pump
Drive Mode: Compressed Air
Materials: A Variety Of Metal Materials
Applies To: Fuel Valve Test Device
Highlight:

AILESEN Compressed Air Hydraulic Pneumatic Pump

,

AILESEN max 1100Bar Hydraulic Pneumatic Pump

,

AILESEN 24kg Fuel Valve Test Device
Basic Infomation
Place of Origin: China
Brand Name: AI LE SEN
Certification: ISO9001
Model Number: HDP1100
Payment & Shipping Terms
Packaging Details: Wooden box by air
Delivery Time: Stock spot
Payment Terms: D/P, T/T
Supply Ability: 500 units per month
Product Description

              HDP1100-D2 Fuel Valve Test Device Pneumatic Pump Unit Maximum Pressure 1100Bar



Air Drive Section

♦ Compressed air is used to produce hydraulic pressure
♦ Works on differential surface area between the large air piston and smaller hydraulic plunger
♦ Differential is represented by the pressure ratio of the pump
♦ Calculation of hydraulic pressure:Compressed Air Pressure x Compression Ratio
♦ Warning: Please use clean compressed air

How Pumps Work
♦ Air pilot operated spool provides automatic cycling of air from one side of the piston to the other
♦ At the end of each stroke, the air piston activates a pilot valve that will cause the spool to shift
♦ The spool shifting will supply air to one side of the piston while venting the other side of the piston
♦ This alternating action continues until the pump reaches its stall pressure

Teature

Type HDP1100
Air Side Material:
Anodized Aluminum
Rated maximum pressure Input Air Pressure 11Bar
Area Ratio 1:100
Displacement per stroke 0.4L/min
Pump speed 30 per minute

Maximum displacement

About. 1.2l/min 8.0 bar air input

weight(Kg)

 24

Pressure oil outlet:

 Customized on demand
                Operating Temperature Range
0° to 140°F (-18° to 80°C)

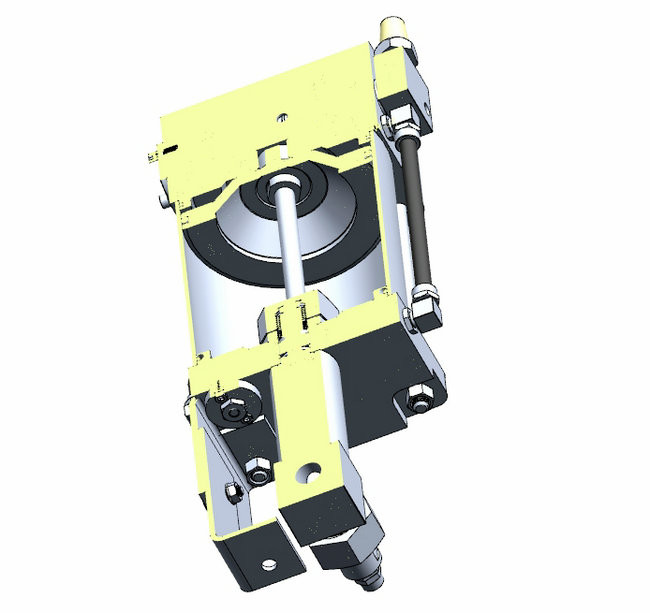

Transparent image of the pump

HDP1100-D2 Hydraulic Pneumatic Pump Fuel Valve Test Device Pressure 1100Bar 0
