Name: 800 Bar Air Driven Pneumatic Powered Hydraulic Pump High Pressure Liquid Pumps
Brand: AILESEN(CHANGZHOU)POWER TECHNOLOGY CO.,LTD
SKU: H800
Price: 46.00 USD
Availability: InStock

800 Bar Air Driven Pneumatic Powered Hydraulic Pump High Pressure Liquid Pumps

1Set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Air Driven High Pressure Liquid Pumps

Pressure: 800bar

Air Pressure: 8Bar

Area Ratio: 1:00

Application: Single Pump

Drive Mode: Compressed Air

Highlight:

AILESEN 800 bar pneumatic powered hydraulic pump

AILESEN 25kg pneumatic powered hydraulic pump

AILESEN high pressure liquid pumps

Basic Infomation

Place of Origin: China

Brand Name: AI LE SEN

Certification: ISO9001

Model Number: H800

Payment & Shipping Terms

Packaging Details: Wooden box by air

Delivery Time: Stock spot

Payment Terms: D/P, T/T

Supply Ability: 500 units per month

Gallery

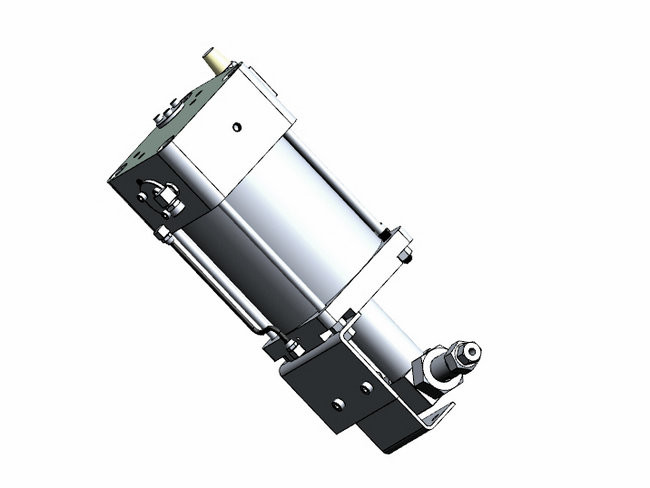

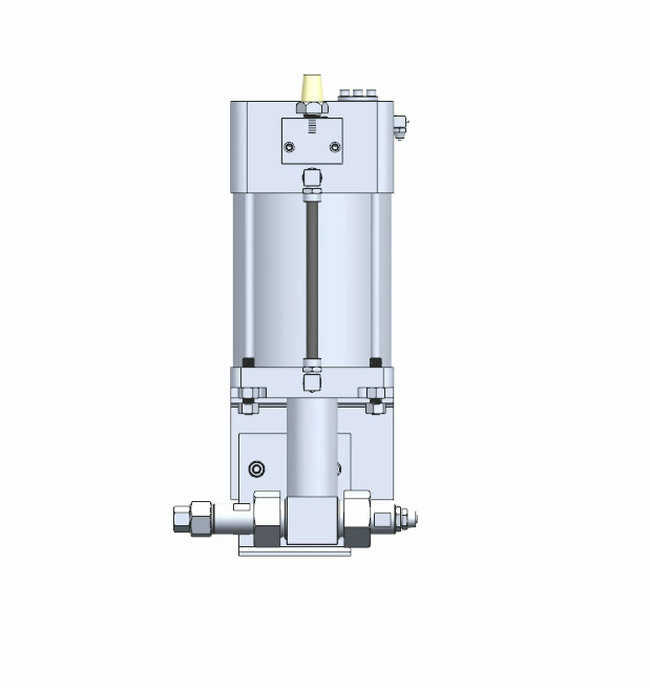

800 Bar Air Driven Pneumatic Powered Hydraulic Pump High Pressure Liquid Pumps

Product Description

Air Driven, High Pressure Liquid Pumps Pneumatic Powered Hydraulic Pump

Pump Operation

Piston to Plunger Ratio

♦ Compressed air is used to produce hydraulic pressure

♦ Works on differential surface area between the large air piston and smaller hydraulic plunger

♦ Differential is represented by the pressure ratio of the pump

♦ The higher the pressure ratio, the higher the output hydraulic pressure

Air Drive Section

♦ Compressed air is used to produce hydraulic pressure

♦ Works on differential surface area between the large air piston and smaller hydraulic plunger

♦ Differential is represented by the pressure ratio of the pump

Teature

Type	H800
Air Side Material:	Anodized Aluminum
Rated maximum pressure	800bar
Area Ratio	1:100
Displacement per stroke	0.4L/min
Pump speed	30 per minute
Maximum displacement	About. 1.2l/min 8.0 bar air input
weight(Kg)	25
Pressure oil outlet:	Customized on demand
Operating Temperature Range	0° to 140°F (-18° to 60°C)
