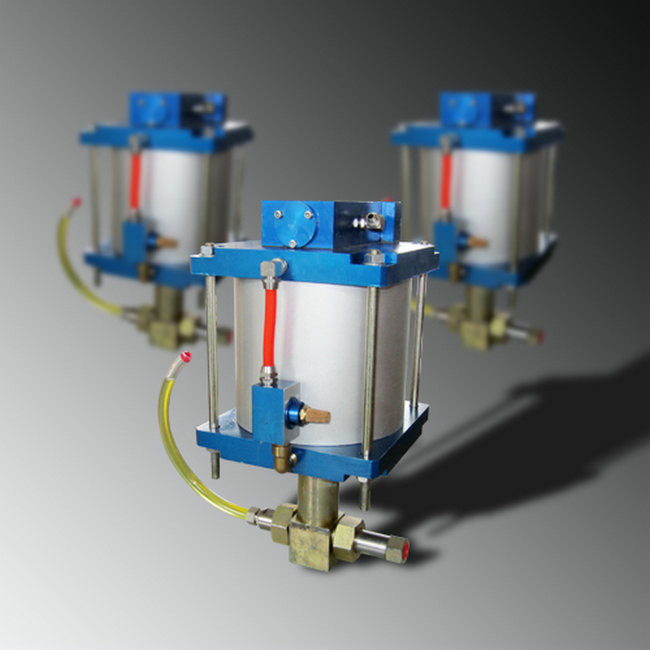

Vpu 1100 Hydraulic Pneumatic Pump 1100Bar High Pressure Liquid

Large Image : Vpu 1100 Hydraulic Pneumatic Pump 1100Bar High Pressure Liquid

Product Details:

Place of Origin:	China
Brand Name:	AI LE SEN
Certification:	ISO9001
Model Number:	VPU1100

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	Wooden box by air
Delivery Time:	Stock spot
Payment Terms:	D/P, T/T
Supply Ability:	500 units per month

Contact Now

Vpu 1100 Hydraulic Pneumatic Pump 1100Bar High Pressure Liquid

Description

Name:	High Pressure Liquid Pumps	Pressure:	1100bar
Air Pressure:	10Bar	Area Ratio:	1:110
Application:	Single Pump	Drive Mode:	Manual Or Air
High Light:	AILESEN 1100 bar Hydraulic Pneumatic Pump , Manual Hydraulic Pneumatic Pump 1100 bar , ailesen high pressure liquid pump

Vpu 1100 High Pressure Liquid Pumps Maximum pressure 1100Bar

Teature

Type	VPU1100
Air Side Material:	Anodized Aluminum
Rated maximum pressure	1100bar
Area Ratio	1:110
Maximum displacement	About. 1.2l/min 8.0 bar air input
weight(Kg)	25
Dimensions(mm)	128x128x180
Air inlet:	ISO228/1-G1/2''
Pressure oil outlet:	Customized on demand
Operating Temperature Range	0° to 140°F (-18° to 60°C)

Tag:

Manual Hydraulic Pneumatic Pump,

air driven high pressure pump,

ISO9001 air driven high pressure pump

Contact Details

AILESEN(CHANGZHOU)POWER TECHNOLOGY CO.,LTD

Contact Person: Shen

Tel: 13815036227
