40ML/Cycle Marine Fuel Valve Test Device Wbtd-1100 Adopts Digital Display

1 set
MOQ
Negotiate
Price
40ML/Cycle Marine Fuel Valve Test Device Wbtd-1100 Adopts Digital Display
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Fuel Valve Test Device
Model: WBTD-1100
Maximum Pressure: 1100Bar
For: 8K90MCC
Drive Way: Pneumatic
Display Mode: Digital Display
N.W.: 78Kg
G.W.: 99Kg
AIR ACCESS PORT: ISO228/1-G1/2
OIL TANK CAPACITY: 8L
Highlight:

40ML/cycle Fuel Valve Test Device

,

Fuel Valve Test Device 1100Bar

,

78Kg vacuum pump uses

Basic Infomation
Place of Origin: China
Brand Name: AI LE SEN
Certification: ISO9001
Model Number: WBTD-1100
Payment & Shipping Terms
Packaging Details: Wooden crate
Delivery Time: In stock
Payment Terms: D/P, T/T
Supply Ability: 100 Set Every month
Product Description

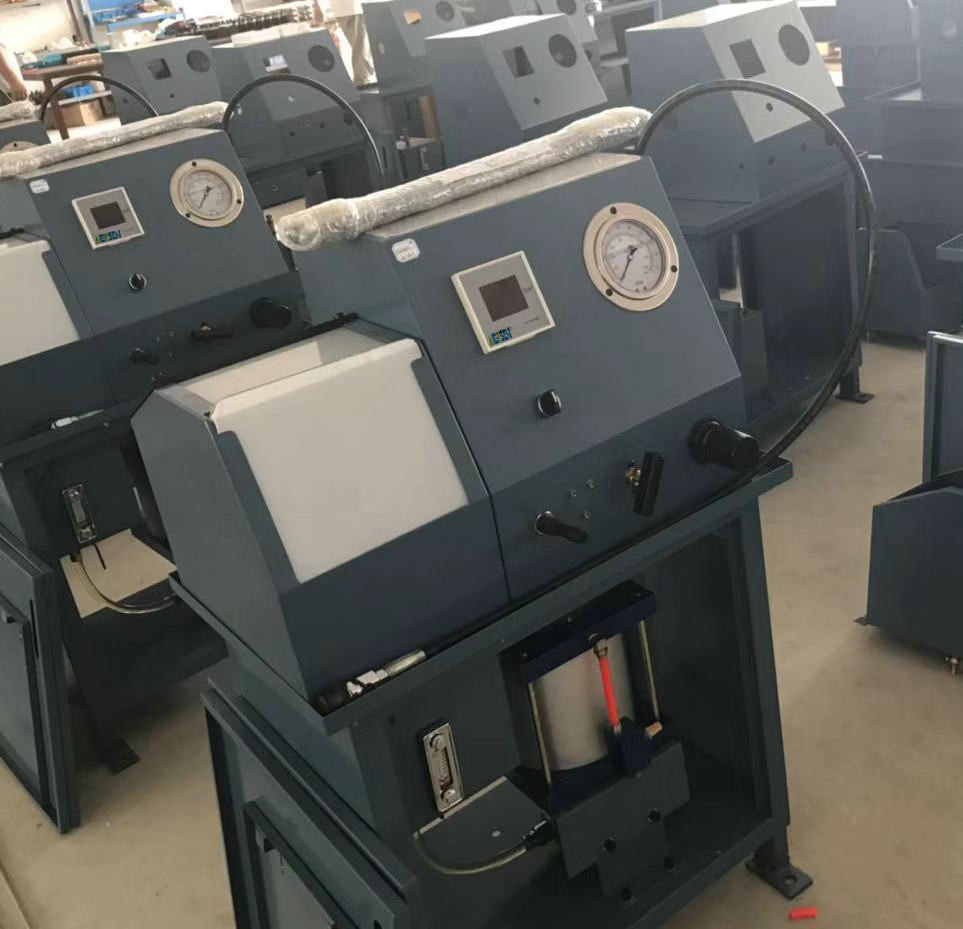

                   The Marine Fuel Valve Test Device Wbtd-1100 Adopts Digital Display To Be More Accurate

Product Brief

use:The pump unit, mainly used to measure its spray condition, is an essential test tool for high-power diesel engines.

Advantage:

1. It has the advantages of big power

2. Wide scope of application: coversLow Speed Diesel Engine.B&W35-98

3. Use digital acquisition system to be more accurate

4. Stainless steel shockproof pressure gauge



Technical parameter

Output pressure

Max.110MPa at 1.1MPa air input

Air consumption

13 Liters/cycle at 0.7MPa air input

Max. flow of fuel oil

40ML/cycle at an air input of 0.4Mpa

Pumping speed

30cycle/Min at 0.4MPa air input (no output pressure)

Tank capacity

8L

Dimension

701x451x1300mm

Weight

78kg

VOLTAGE SUPPLY 115~230VAC




Purchase Notes:Please inform us the main diesel engine model, such as 8K90MCC

Means of transaction:Pay first and ship(FOB)

If you need to buy a fuel valve test device, please contact us directly, because we are a professional manufacturer. No matter whether the price or technology will benefit you the most .



SPECIFICATION:

The Wbtd-1100 he main feature is that the new pump is electronically controlled. The pump unit is equipment with a digital display. It shows the working pressure, opening pressure and closing pressure with an accuracy of +/- 1bar. Notice: The atomization test will damage the fuel valve, please do not do the atomization test continuously.



Featuring

1. One unit test all fuel-injection valves aboard.

2. Compatible with other diesel engines MCC/MEC/MEB

3. Separate display for data collection (opening/venting pressure)

4. Precise digital read-out (± 1bar)
