77Kg Hdp1100-D2 Fuel Valve Test Device For Mcc Meb Mec Mk Diesel Engine Tester

1 set
MOQ
Negotiate
Price
77Kg Hdp1100-D2 Fuel Valve Test Device For Mcc Meb Mec Mk Diesel Engine Tester
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Fuel Valve Test Device
Model: HDP1100-D2
For: MCC/MEC/MEB/MK
Flow Rate Per Stroke: 0.4L
Displacement Per Minute: 1.2L
Display Method: Digital Display
Weight: 77Kg
Air Access Port: ISO228/1-G1/2
Highlight:

AILESEN 77Kg Fuel Valve Test Device

,

AILESEN MK Fuel Valve Test Device

,

AILESEN MEC diesel engine tester

Basic Infomation
Place of Origin: China
Brand Name: AI LE SEN
Certification: ISO9001
Model Number: HDP1100-D2
Payment & Shipping Terms
Packaging Details: Wooden crate
Delivery Time: In stock
Payment Terms: D/P, T/T
Supply Ability: 100 Set Every month
Product Description

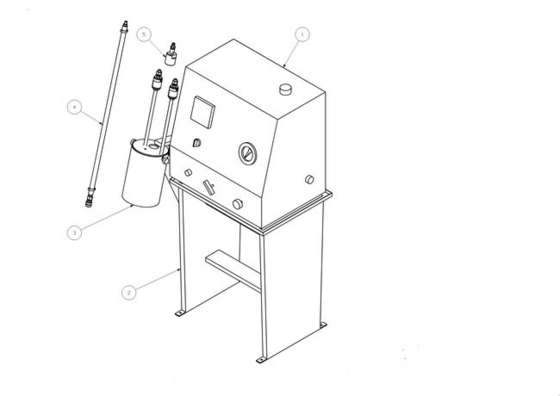

                       HDP1100-D2 SERIES FUEL VALVE TEST DEVICE FOR MCC MEB MEC MK DIESEL ENGINE



Product Brief

Originally developed for spool valve injectors, it is now available for many injector types. It simplifies the correct execution of all required test steps, providing accurate and consistent data collection. Covers MCC/MEC/MEB/MK35-98 marine low speed diesel engines



For

SafeTest technology for MAN Diesel 2-stroke spool valve injectors

Pneumatic test bench for 4-stroke engine injectors for fast and precise adjustment of cracking pressure, leakage pressure, sealing tests



Technical parameter

Output pressure

Max.80 MPa at 0.8 MPa air input

Max. flow of fuel oil

0.4L/cycle at an air input of 0.4Mpa

Pumping speed

30cycle/Min at 0.5MPa air input (no output pressure)

Tank capacity

8L

Dimension

560x950x1525mm

Weight

77kg



Buying Details

Please provide the correct model of the main diesel engine.



Spare parts

Fuel test valve spare parts include: 1 set of repair kit, 1 set of air connector
