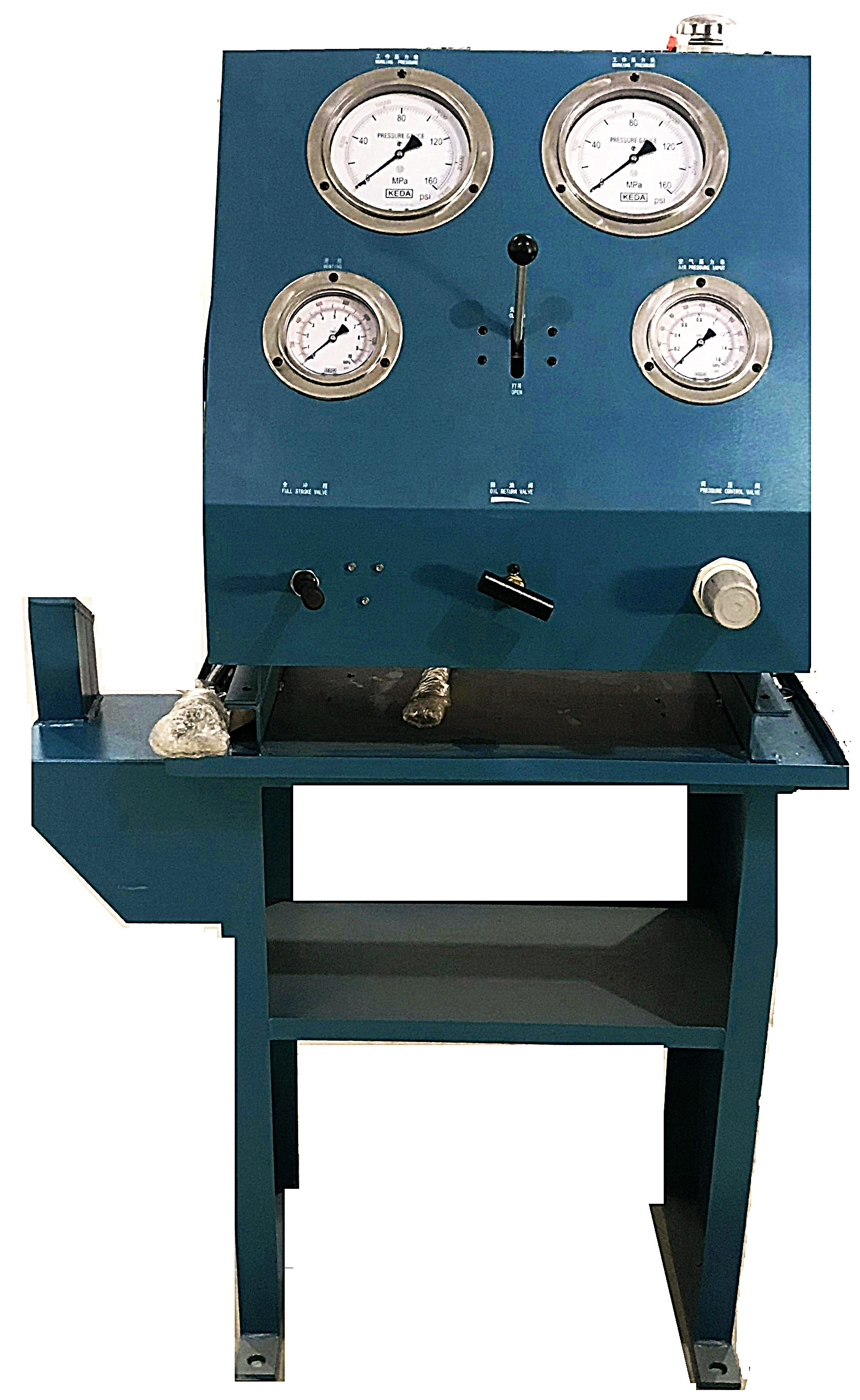

VTU-1100N FUEL VALVE TEST DEVICE
Company Profile
AILESEN (CHANGZHOU) POWER TECHNOLOGY CO., LTD The company's main activities are the development, manufacturing, sales, sales and maintenance of pneumatic/hydraulic fuel injection valves and fuel pump test equipment and hydraulic power units for 2 and 4-stroke diesel engines.
For information about Fuel Valve Test Device, Please E-mail :ailesen@163.net
Company website:www.aileseng.com
Product Brief
Uses: The pump set is mainly used to measure its spray state, and is an essential test tool for high-power, low-speed diesel engines.
1. It has a large oil discharge capacity, and the test range covers MAN35-98 spool type fuel valve
3. Pointer pressure gauge, accuracy class 1.0
4. Ergonomic viewing window
5. Simple internal structure and easy maintenance
Technical parameter
Output pressure |
Max.110 MPa at 1.1MPa air input |
Air consumption |
16 Liters/cycle at 0.7MPa air input |
Max. flow of fuel oil |
40ML/cycle at an air input of 0.4Mpa |
Pumping speed |
30cycle/Min at 0.45MPa air input (no output pressure) |
Tank capacity |
8L |
Dimension |
620x470x1520mm |
Weight |
100kg |
