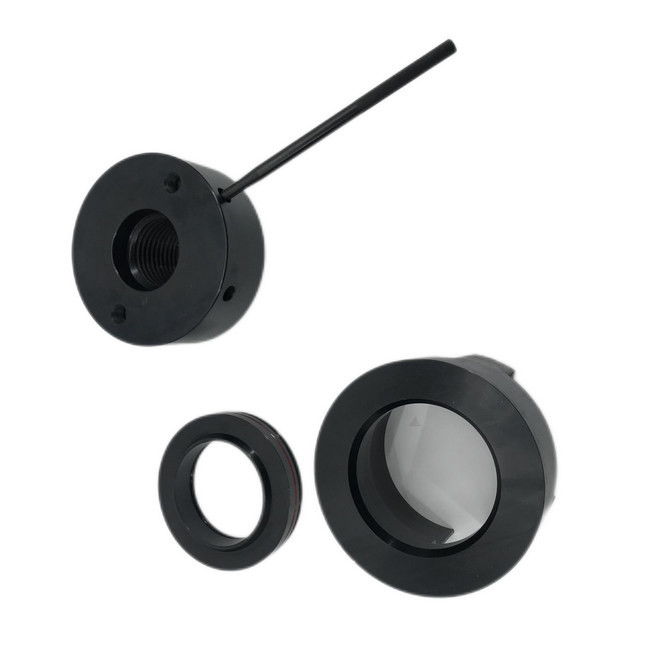

Ctst Series Bolt Hydraulic Tension Tool Maximum Pressure 1500Bar
Ctst Series Features
Ctst series hydraulic tensioner is one of the most compact and reliable tensioners at present. The sealing rings used are all machined separately, not mass-produced by molds, and the sealing size is not limited.
The product has reliable sealing, piston over-travel warning, hydraulic line connection synchronization system and expandable auxiliary functions.
Type |
Threadsize |
Preload forco (KN) |
Stroke (mm) |
|
Metric |
Inch | |||
CTST-018 | M18 | 45/64 | 172 | 10 |
CTST-020 | M20 | 51/64 | 208 | 10 |
CTST-022 | M22 | 7/8 | 264 | 10 |
CTST-024 | M24 | 1 | 327 | 10 |
CTST-027 | M27 | 1-1/8 | 448 | 10 |
CTST-030 | M30 | 1-1/8 | 448 | 15 |
CTST-033 | M33 | 1-1/4 | 679 | 15 |
CTST-036 | M36 | 1-3/8 | 810 | 15 |
CTST-039 | M39 | 1-1/2 | 810 | 15 |
CTST-042 | M42 | 1-5/8 | 917 | 15 |
CTST-045 | M45 | 1-3/4 | 952 | 15 |
CTST-048 | M48 | 1-7/8 | 1151 | 15 |
CTST-052 | M52 | 2 | 1277 | 15 |
CTST-056 | M56 | 2-1/4 | 1455 | 15 |
CTST-060 | M60 | 2-3/8 | 1455 | 15 |
CTST-064 | M64 | 2-1/2 | 1794 | 15 |
CTST-068 | M68 | 2-3/4 | 1794 | 15 |
CTST-072 | M72 | 2-7/8 | 2116 | 15 |
CTST-076 | M76 | 3 | 2579 | 15 |
CTST-080 | M80 | 3-1/4 | 2579 | 15 |
CTST-085 | M85 | 3-3/8 | 2963 | 15 |
CTST-090 | M90 | 3-1/2 | 3506 | 15 |
CTST-095 | M95 | 3-3/4 | 3951 | 15 |
CTST-100 | M100 | 4 | 4573 | 15 |
warn!
The above table data is for reference only, the hydraulic bolt tensioning tool is a customized product and must be designed according to the user's working conditions .
Please get in touch with our engineers before placing an order.
