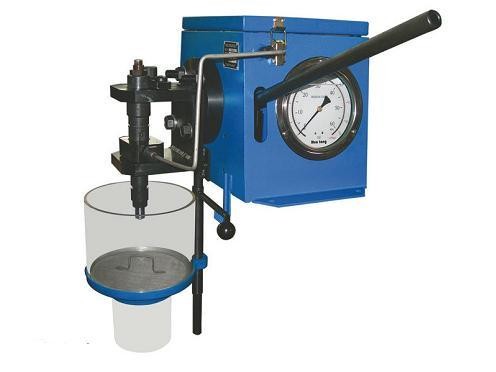

Auxiliary Marine Diesel Engine Fuel Valve Test Device VTU-H003
This type of test rig is now standard maintenance equipment for 4-stroke Diesel Fuel valves
Product Brief
1. This type of test rig is now standard maintenance equipment for 4-stroke diesel fuel valves
2. One unit test all fuel-injection valves aboard (H21/32,H25/33,H17/28)
3. The unit powered by manual pump, maximum hydraulic pressure 600bar/60MPa.
4. Analogue gauge, readings class 1.0
5. The following test can be performed : Opening pressure
Atomizing test
fuel injector test 60MPa
Technical parameter
Output pressure |
Max.60MPa |
Displacement per stroke |
1.5ML |
Oil Tank Capacity | 6L |
Dimension |
430x280x660mm |
Weight |
33kg |
