Pneumatic Fuel Valve Test Device Can Test Man Mk98 With Pointer Pressure Gauge
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Fuel Valve Test Device
Model: HDP1100-1
Drive Way: Pneumatic
Display Mode: Pointer Pressure Gauge
G.w.: 130Kg
Air Access Port: ISO228/1-G1/2
Test Model: MK98
Flow Per Minute: 1.2L
Highlight:

Pneumatic Fuel Valve Test Device AILESEN

,

MK98 Fuel Valve Test Device AILESEN

,

AILESEN MK98 Fuel Valve Test Device

Basic Infomation
Place of Origin: China
Brand Name: AI LE SEN
Certification: ISO9001
Model Number: HDP1100-1
Payment & Shipping Terms
Packaging Details: Wooden crate
Delivery Time: In stock
Payment Terms: D/P, T/T
Supply Ability: 100 Set Every month
Product Description

                       Fuel Valve Test Device Can Test MAN-MK98 Fuel Valve



Product Brief

This type of test rig is equipment for MAN Diesel Slide Fuel Valves.

Can The atomizing test

One unit test all fuel-injection valves aboard

The unit powered by air, and delivers a maximum hydraulic pressure of 1100bar

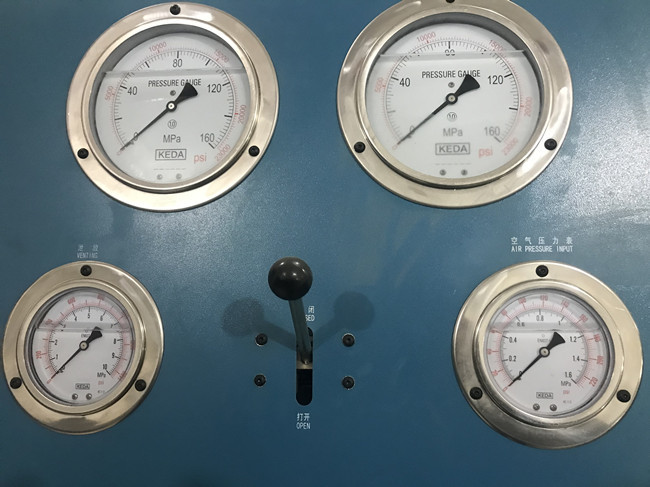

Analogue gauge, readings class 1.0



The following test control procedures can be performed :

Opening pressure

Venting function

Leak Test

O-ring seal Test



3,130Kg hydraulic test pump



Technical parameter

Output pressure

Max.80MPa at 0.8MPa air input

Air consumption

12 Liters/cycle at 0.7MPa air input

Max. flow of fuel oil

40ML/cycle at an air input of 0.4Mpa

Pumping speed

30cycle/Min at 0.4MPa air input

Tank capacity

8L

Dimension

560x950x1520mm

Weight

130kg



Random configuration list

Name Quantity
Spare parts for fuel valve clamping 1 Set
Repair kits 1 Set



Means of transaction:Pay first and ship(FOB)

If you need to buy a fuel valve test device, please contact us directly, because we are a professional manufacturer. No matter whether the price or technology will benefit you the most .
