Fuel Valve Testing For High Power Low Speed Diesel Engines VTU1100-N

1 set
MOQ
Negotiate
Price
Fuel Valve Testing For High Power Low Speed Diesel Engines VTU1100-N
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Fuel Valve Test Device
Model: VTU-1100N
Drive Way: Pneumatic
Display Mode: Pointer Pressure Gauge
G.w.: 132Kg
Air Access Port: ISO228/1-G1/2
Highlight:

12 Ltr/cycle Fuel Valve Testing AILESEN

,

AILESEN 12 Ltr/cycle Fuel Valve Testing

,

12 Ltr/cycle AILESEN Fuel Valve Testing

Basic Infomation
Place of Origin: China
Brand Name: AI LE SEN
Certification: ISO9001
Model Number: VTU-1100N
Payment & Shipping Terms
Packaging Details: Wooden crate
Delivery Time: In stock
Payment Terms: D/P, T/T
Supply Ability: 100 Set Every month
Product Description

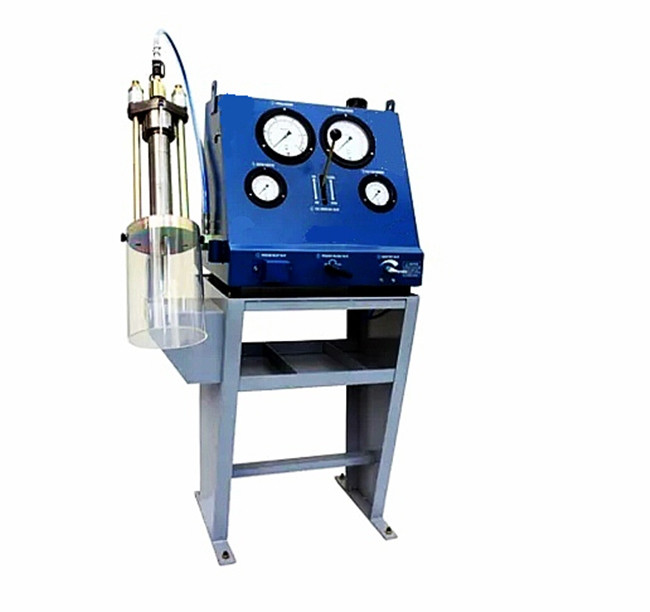

                       Fuel Valve Test Device Is Suitable For High-Power Low-Speed Diesel Engines



Product Brief

This type of test rig is now standard maintenance equipment for new MAN Diesel Slide Fuel Valves.
The atomizing test cannot be executed.

One unit test all fuel-injection valves aboard

The unit powered by air, and delivers a maximum hydraulic pressure of 1100bar

Analogue gauge, readings class 1.0

The following test control procedures can be performed :

Opening pressure

Venting function

Leak Test

O-ring seal Test



1,105kg Fuel Valve Testing

3,diesel injector tester ISO9001

Technical parameter

Output pressure

Max.80MPa at 0.8MPa air input

Air consumption

12 Liters/cycle at 0.7MPa air input

Max. flow of fuel oil

40ML/cycle at an air input of 0.4Mpa

Pumping speed

30cycle/Min at 0.4MPa air input (no output pressure)

Tank capacity

8L

Dimension

560x950x1525mm

Weight

105kg



Random configuration list

Name Quantity
Spare parts for fuel valve clamping 1 Set
Repair kits 1 Set



Purchase Notes:Please inform us the main diesel engine model, such as 7G80MEB

Means of transaction:Pay first and ship(FOB)

If you need to buy a fuel valve test device, please contact us directly, because we are a professional manufacturer. No matter whether the price or technology will benefit you the most .
