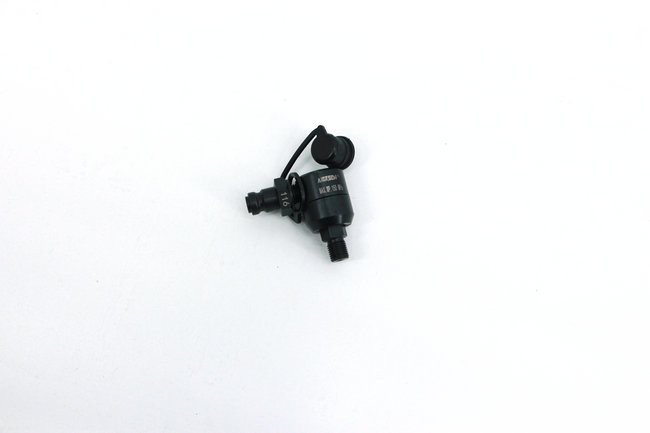

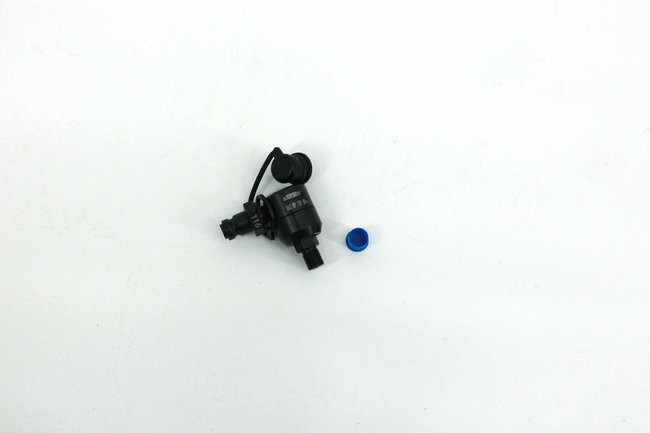

The High Pressure Coupling That Can Be Rotated Has A Pressure Of 1500 Bar
product description
The 116 series of hydraulic quick connect couplings for ultra high pressure are easy to handle, safe and reliable. The quick couplers are available in both standard and flat-face designs. Series 116 are non-drip couplings with clean connection and disconnection protecting both the environment and circuit integrity.The high performance and robust design with small outer dimensions, makes it a suitable option in many different applications. Additionally, a 90° swivel connection is available for use in confined areas. Plastic dust caps come as standard for both the couplings and nipples. These extend the lifetime of couplings, nipples and the entire hydraulic system
Technical data
| Connection | G1/4 |
| Flow rate | 6l/min |
| Maximum working pressure | 1500bar |
| Temperature range |
-30ºC — +100ºC |
