Home /Products/2 Stroke Diesel Engine Parts/0 To 1600Bar Stainless Steel Liquid Filled Pressure Gauge Shockproof Silicone Filled Pressur

0 To 1600Bar Stainless Steel Liquid Filled Pressure Gauge Shockproof Silicone Filled Pressur

1 Set
MOQ
Negotiated
Price
0 To 1600Bar Stainless Steel Liquid Filled Pressure Gauge Shockproof Silicone Filled Pressur
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Pressure Gauge
Measuring Range: 0-1600Bar
Material: Stainless Steel
Installation Method: Panel Type
Installation Direction: Y Axis
Shockproof Medium: Silicone Oil
Accuracy Class: 1.6
Highlight:

1600Bar Liquid Filled Pressure Gauge

,

Stainless steel Liquid Filled Pressure Gauge

,

AISI 316 silicone filled pressure gauge
Basic Infomation
Place of Origin: China
Brand Name: AI LE SEN
Certification: ISO9001

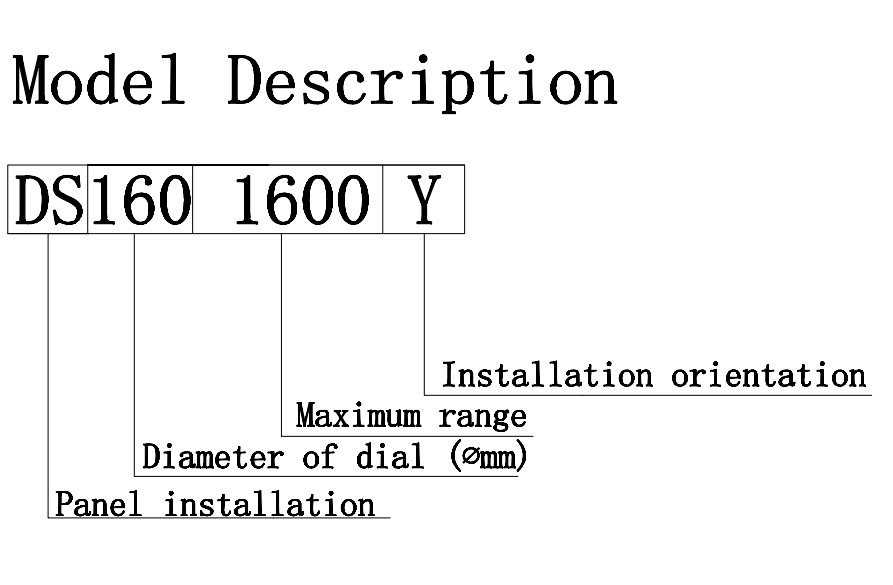

Model Number: DS160-1600-Y
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Inventory stock
Payment Terms: D/P
Supply Ability: 400 sets per month
Product Description

                                                                            Pressure gauge



  • Bottom and panel mounted hydraulic pressure gauges
  • Stainless steel AISI 316 and AISI 304. Dial face of aluminum with black graduations.
  • Pointer of aluminum or stainless steel. Gasket of polychloroprene. Window of plexiglass.
  • The actual pressure must be controlled within 70% of the range.
  • When installing the pressure gauge, the pressure gauge adapter must be used together.
  • There are 3 fixed threaded holes on the DS type pressure gauge
  • The pressure gauge does not come with inspection report and calibration certificate.
  • If necessary, please inform when ordering.
  • Please consult AI LE SEN when using non-hydraulic oil.

     Technical data:

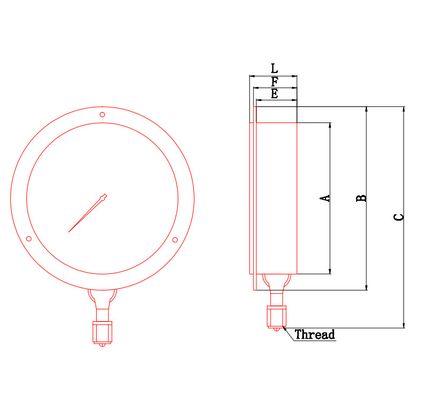

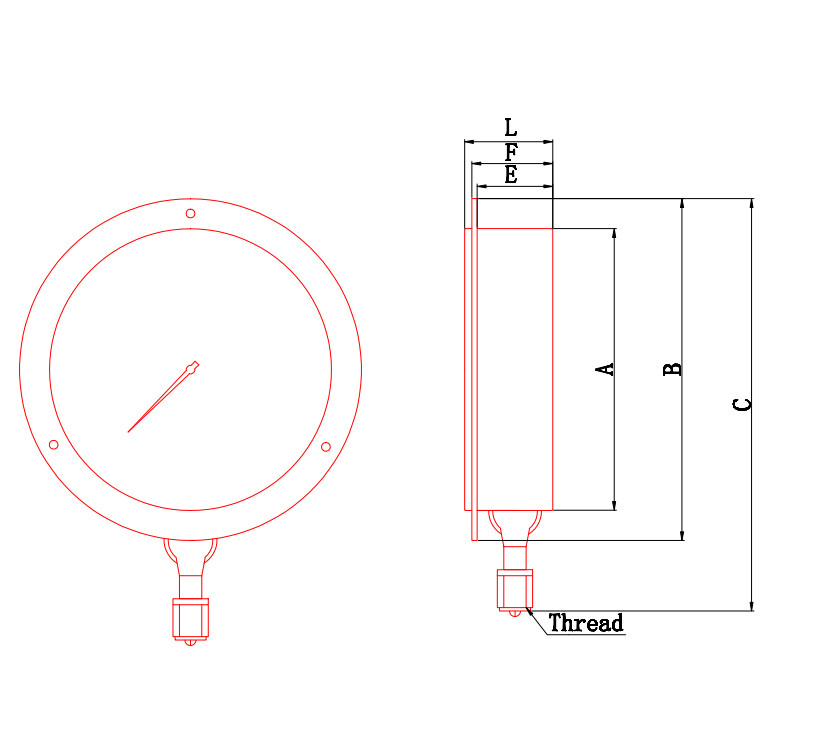

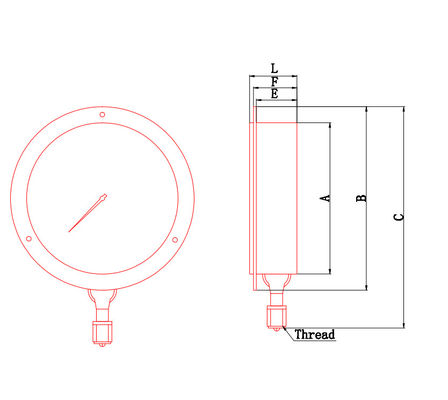

Type A(mm) B(mm) C(mm) E(mm) F(mm) L(mm) Thread
DS160-1600-Y 160 194 234 43 46 50 G1/2

0 To 1600Bar Stainless Steel Liquid Filled Pressure Gauge Shockproof Silicone Filled Pressur 0

0 To 1600Bar Stainless Steel Liquid Filled Pressure Gauge Shockproof Silicone Filled Pressur 1

0 To 1600Bar Stainless Steel Liquid Filled Pressure Gauge Shockproof Silicone Filled Pressur 2

0 To 1600Bar Stainless Steel Liquid Filled Pressure Gauge Shockproof Silicone Filled Pressur 3
