ESE Type Hydraulic Bolt Tensioning Cylinder Large Bolt Fastening And Disassembly Tool

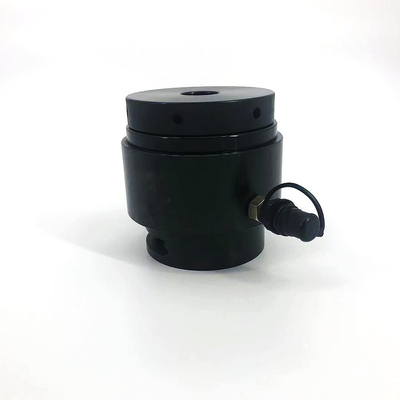

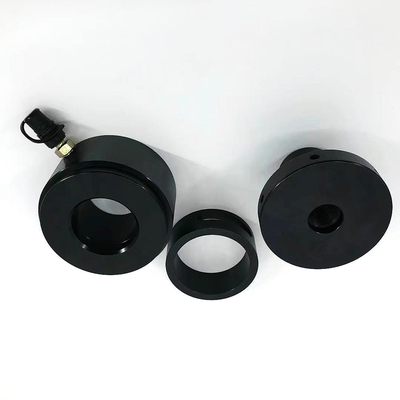

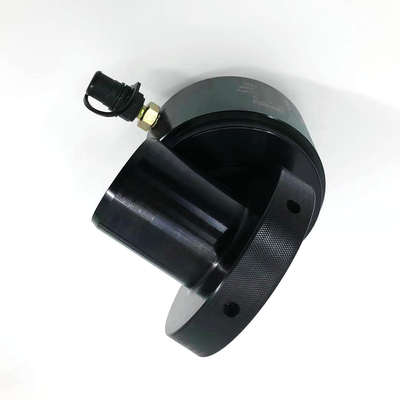

Hydraulic Bolt Tensioning Cylinder type SES, single-stage, simple
Single-staged simple, "open" design for long projecting threads like on foundation bolts, heat exchangers or flanges.
1. Single-staged BTC simple, "open" design for long projecting threads like on foundation bolts, heat exchangers or flanges.
2. Type SES - foundation bolt connection chimney
3. Type SES - foundation bolt connection wind turbine
4. Type SES - ANSI flange
Type SES (single-stage simple): Short & wide design for radially open but limited vertical clearance applications.
Standard scope
design for bolt quality 8.8: M16 to M110
special cylinders, customized designs for bolt qualities 5.6, 6.8 or 10.9 or further bolt qualities can be delivery on request.
Bolt Tensioning Cylinders can be used for the following fastener configurations:
Hexagon nuts
1. ISO 4032: Hexagon nuts (former DIN 934)
2. DIN 2510-5: Hexagon nuts
3. EN 14399-4: High strength pre tension able bolt connections for the steel constructions (former DIN 6915)
4. Heavy hex nuts
5. Hexagon nuts according to customer designs
Round nuts:
1. Round nuts with radial hole
2. Round nut with center holes
3. Round nuts RMS /RMZ
4. Round nuts according to customer designs
Type | Preload force(KN) | Nominal diameter | Stroke(mm) |
SES16-8.8 | 125 | 5/8’’ |
15mm |
SES20-8.8 | 150 | 3/4’’ | |
SES22-8.8 | 150 | 7/8’’ | |
SES24-8.8 | 200 | 1’’ | |
SES27-8.8 | 260 | - | |
SES30-8.8 | 320 | 1 1/8’’ | |
SES33-8.8 | 400 | 1 1/4’’ | |
SES36-8.8 | 470 | 1 3/8’’ | |
SES39-8.8 | 560 | 1 1/2’’ | |
SES42-8.8 | 640 | 1 5/8’’ | |
SES45-8.8 | 750 | 1 3/4’’ | |
SES48-8.8 | 854 | 1 7/8’’ | |
SES52-8.8 | 1016 | 2’’ | |
SES56-8.8 | 1175 | 2 1/4’’ | |
SES60-8.8 | 1400 | 2 3/8’’ | |
SES64-8.8 | 1550 | 2 1/2’’ | |
SES68-8.8 | 1678 | - | |
SES72-8.8 | 1800 | 2 3/4’’ | |
SES80-8.8 | 2350 | - | |
SES90-8.8 | 2450 | 3 1/2’’ | |
SES100-8.8 | 2750 | 4’’ | |
SES110-8.8 | 2500 | 4 1/4’’ |
Chnical modifications and changes are reserved. Feel free to contact us for an individual design or further information.
Available in standard or custom models, to suit any application. Works with hand, air or electrical pump types.
