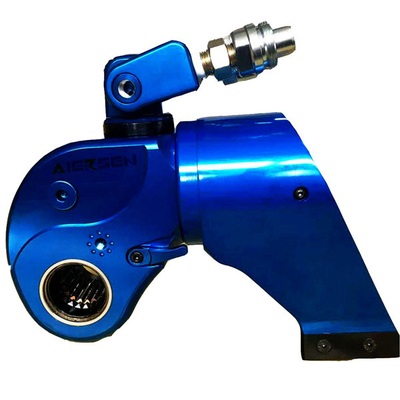

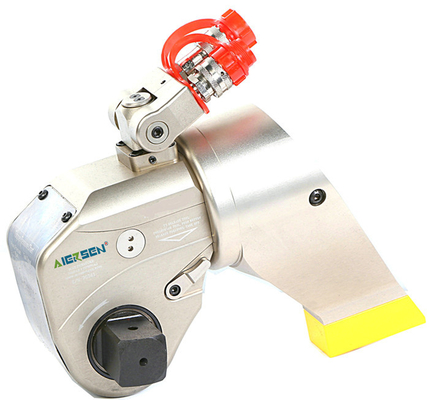

Hydraulic torque wrenches
Type:DH Series
Product Brief

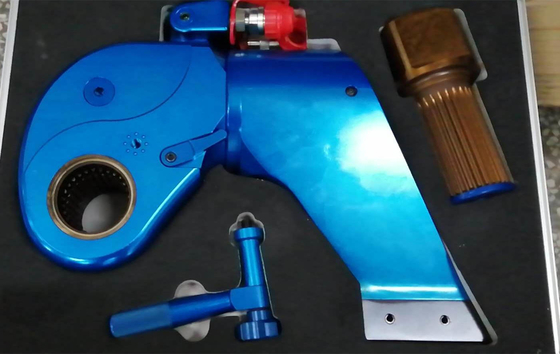

The hydraulic torque wrench system is connected by a working head, a reaction arm quick connector, a high-pressure oil pipe, a high-pressure pump station and a sleeve. Under the action of the oil pressure of the high-pressure pump station, with various sleeves with different openings, the fastening and loosening of various bolts can be completed. Convenient and reliable, high precision
Features of Hydraulic torque wrenches:
1. Light weight, small size, large torque
2. High precision: using precision ratchet wheel, torque can be adjusted accurately
3. 360-adjustable reaction arm and tubing joint: 360 fine-tuning reaction arm, with 360×180 rotating tubing joint, can fully meet the operating requirements of different working environments
4. Wide range of use, with different sizes of sleeves, suitable for disassembly and assembly of various specifications of bolts
5. Save labor costs, reduce work intensity, and improve work efficiency
Technical parameter
Type | Minimum Torque(Nm) | Nominal Torque(Nm) | Square Drive Size | Dimensions(mm) | Wight (Kg) | |||||||
L1 | L2 | H1 | H2 | H3 | H4 | R1 | R2 | |||||
DH01 | 112 | 1120 | 3/4″ | 111 | 139 | 42 | 66 | 76 | 108 | 20 | 68 | 1.8 |
DH02 | 185 | 1852 | 3/4″ | 138 | 194 | 50 | 73 | 96 | 140 | 26 | 107 | 2.5 |
DH05 | 436 | 4364 | 1″ | 168 | 244 | 70 | 99 | 125 | 165 | 34 | 132 | 4.5 |
DH07 | 779 | 7789 | 1-1/2″ | 207 | 296 | 80 | 124 | 152 | 193 | 40 | 162 | 8 |
DH10 | 1072 | 10715 | 1-1/2″ | 226 | 326 | 90 | 133 | 170 | 211 | 46 | 178 | 11 |
DH15 | 1553 | 15528 | 1-1/2″ | 250 | 366 | 100 | 143 | 186 | 227 | 50 | 199 | 14.5 |
DH20 | 2050 | 20501 | 2″ | 281 | 402 | 112 | 165 | 208 | 249 | 56 | 218 | 18.5 |
DH25 | 2617 | 26171 | 2-1/2″ | 304 | 442 | 120 | 183 | 226 | 267 | 60 | 240 | 25 |
DH35 | 3493 | 34928 | 2-1/2″ | 323 | 483 | 138 | 202 | 250 | 291 | 66 | 260 | 35 |
DH48 | 4963 | 49627 | 2-1/2″ | 390 | 558 | 150 | 219 | 282 | 323 | 77 | 298 | 44 |
DH59 | 5912 | 59123 | 2-1/2″ | 412 | 570 | 163 | 229 | 288 | 332 | 80 | 303 | 63 |
DH72 | 7135 | 71349 | 2-1/2″ | 418 | 596 | 166 | 232 | 300 | 359 | 82 | 325 | 89 |
DH130 | 13028 | 130284 | 4″ | 520 | 757 | 200 | 294 | 298 | 353 | 115 | 400 | 155 |
Purchase notice: Please inform us of bolt specifications, strength, opposite sides and diagonals of nuts
Means of transaction:Pay first and ship(FOB)
For more information about Hydraulic torque wrenches, please email to:ailesen@163.net
