Product Name: Hydraulic Bolt Tensioning Cylinder
Work Pressure: 0-2200Bar
Oil Inlet: ISO228/1-G1/4
Max Stroke: 10-15mm
Usage: Remove And Tighten Bolts
Processing Type: Forged Alloy Steel
Oem Service: Accept
Condition: New
Highlight:

2200Bar Hydraulic Bolt Tensioning

,

alloy steel Hydraulic Bolt Tensioning

,

bolt tensioning tool 15mm

Basic Infomation
Place of Origin: China
Brand Name: AI LE SEN
Certification: ISO9001
Model Number: ES
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 5-6 Work days
Payment Terms: D/P
Supply Ability: 200 Set Every month
Product Description

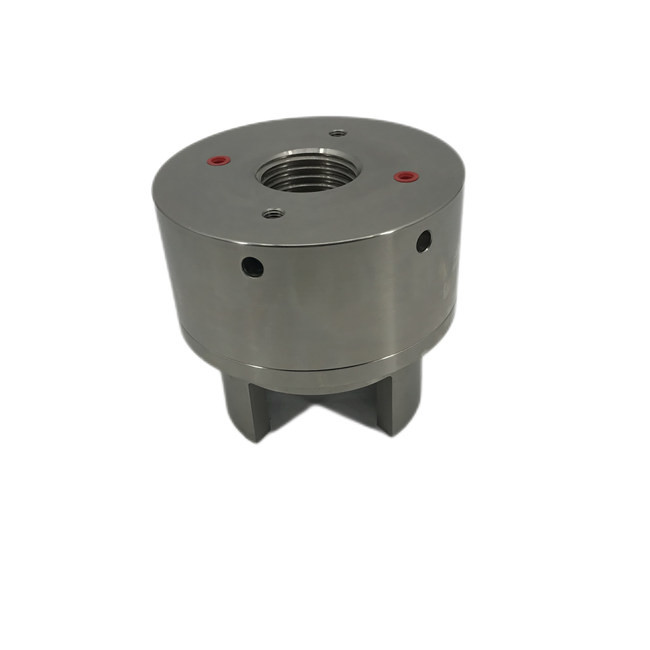

             Hydraulic Bolt Tensioning Cylinder Type ES, Single-Stage Hydraulic Bolt Stretcher



For

Bolt tensioning cylinders with one piston surface and automatic piston return for high bolting cycles. For applications with axially limited and radially free space.



Type ES (single-stage)

Short & wide design for radially open but limited vertical clearance applications



Standard scope

design for bolt quality 10.9: M16 to M150

design for bolt quality 8.8: M16 to M110



Custom made

design for bolt quality 12.9: M20 to M560

design for bolt quality 14.9: M20 to M560

Special tensioning cylinders, custom designs of bolt quality 4.8, 8.8 or 12.9 or other bolt qualities are available upon request.



Hexagon nuts

ISO 4032: Hexagon nuts (former DIN 934)

DIN 2510-5: Hexagon nuts

EN 14399-4: High strength pre tension able bolt connections for the steel constructions (former DIN 6915)

Heavy hex nuts

Hexagon nuts according to customer designs



Round nuts:

Round nuts with radial hole

Round nut with center holes

Round nuts RMS /RMZ

Round nut

Round nuts according to customer designs



Product description of the Bolt Tensioning Cylinder type ES

Use a hand torque wrench or battery nut wrench to tighten the bolt tensioning cylinder onto the bolt.

The calculated pressure is generated by the ALS high pressure pump. This produces torsion-free and friction-free elongation of the bolt. The hydraulic pressure at the pump is proportional to the preload of the bolt tensioning cylinder applied to the bolt.

When pressure is reached, tighten the nut with a hand torque wrench to control torque output.





Type Preload force(KN) Nominal diameter Stroke(mm)
SE16-8.8 125 5/8’’



















10-15mm

SE20-8.8 150 3/4’’
SE22-8.8 150 7/8’’
SE24-8.8 200 1’’
SE27-8.8 260 -
SE30-8.8 320 1 1/8’’
SE33-8.8 400 1 1/4’’
SE36-8.8 470 1 3/8’’
SE39-8.8 560 1 1/2’’
SE42-8.8 640 1 5/8’’
SE45-8.8 750 1 3/4’’
SE48-8.8 854 1 7/8’’
SE52-8.8 1016 2’’
SE56-8.8 1175 2 1/4’’
SE60-8.8 1400 2 3/8’’
SE64-8.8 1550 2 1/2’’
SE68-8.8 1678 -
SE72-8.8 1800 2 3/4’’
SE80-8.8 2350 -
SE90-8.8 2450 3 1/2’’
SE100-8.8 2750 4’’
SE110-8.8 2500 4 1/4’’



Our Chinese modifications and changes are reserved. Feel free to contact us for an individual design or further information.

Available in standard or custom models, to suit any application. Works with hand, air or electrical pump types.
