HDP1100-X Fuel Valve Test Set For WäRtsilä RT-Flex / W-X Common Rail Engines
Application

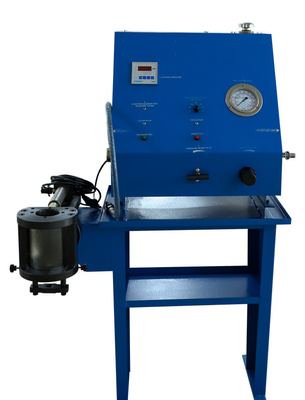

Marine fuel injector testing unit HDP is equipped with a digital readout for effective and precise testing of fuel injectors in 2– & 4 – stroke marine diesel engines
HDP1100-X has been developed upon request from a major engine builder enabling test of the electronic fuel injector placed in the Wärtsilä RT-flex / W-X Common Rail engine.
The test unit features an electronic system for activation of the solenoid valve placed inside the tested fuel injector
Features
This unit is a pneumatic/hydraulic test rig with digital readout for providing a precise result. It features a robust design as a professional tool for fuel injector testing onboard ships and in offshore sites.
HDP1100-X features
Digital readout for precise result (±1 bar)
Adjusting of hold time
Electronic activation of solenoid valve
Following tests are available
Injector solenoid test
Injector spray test
Nozzle sealing test
Suitable for diesel engines
WäRtsilä RT-Flex-35
Technical Data
Hydraulic output pressure: |
Max. 1100 bar @ 11bar air Max. 800 bar @ 8bar air |
Air consumption: |
60 l/cycle @ 11 bar air 45 l/cycle @ 7 bar air |
Max flow at no pressure: | 1,2 l/min @ 7 bar air |
Cycle frequency: | 30cycles/min @ > 7 bar air input and no output pressure |
Discharge pr. cycle: | 40 cm3 |
Tank capacity: | 6 litres |
Gauges: |
Gauge: Class 1.0 Display: Class 0.2 |
Weight: | 77 kg |
Dimensions: | 560x950x1525 mm |
Power consumption: |
Max 100 VA 230 or 115 VAC 50-60 Hz |
Included adapters: |
Pneumatic: Standard Claw Coupling or M42x2 Hydraulic: High Pressure Hose with 116 series Female coupling |
